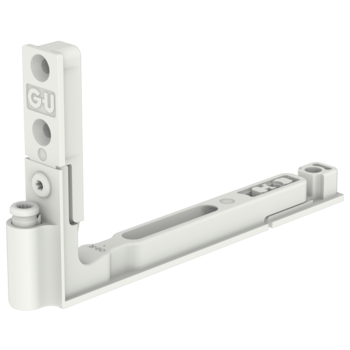

6-40503-09-L-1 | Corner Hinge UNI JET SCF AX9
Part No.6-40503-09-L-1
EAN 4015596540409
Area of application
Window technology
Area of application (specified)
Tilt&Turn, Turn-Only, Tilt-First
Application system
UNI-JET SCF
Product type
Corner-hinge
Description of finish
ferGUard*silver
Gross weight
0.124 KG
Packing unit
50 EA
Minimum ordering unit
1 EA
1 Version found
6-40503-09-R-1 | Corner-hinge | Corner Hinge UNI JET SCF AX9
Part No.6-40503-09-R-1
EAN4015596540416
No content available
Attributes
Installation
Concealed
Clearance
12 mm
Sash rebate width
250 - 1.400 mm
Height adjustment
Lift 2 mm, Lower 1 mm
Max. sash weight
130 kg
Axis
9 mm
Opening direction of hinges
Left
Profile material
Holz, PVC
Horizontal adjustment
+ 2 mm - 1 mm
