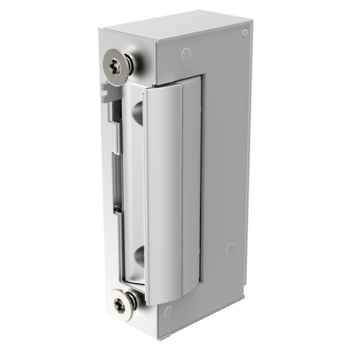

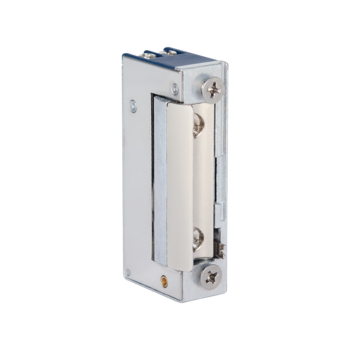

6-35804-02-0-1 | Electric strike ET8 AE 9-24V AC/DC (12V
Part No.6-35804-02-0-1
EAN 4015596131690
Area of application
Door technology
Area of application (specified)
Turn-Only
Application system
GU-BKS electric strike ET 8
Product type
Electric strike
Description of finish
ferGUard*silver
Gross weight
0.139 KG
Packing unit
1 EA
Minimum ordering unit
1 EA
No content available
Attributes
Clearance screw connection
52,5 mm
Duty ratio
9-13 V DC: 100 % duty ratio, 12 V AC: 100% duty ratio, 24 V DC: < 1 min, 24 V AC...
Show more
9-13 V DC: 100 % duty ratio, 12 V AC: 100% duty ratio, 24 V DC: < 1 min, 24 V AC: < 1 min.
Show less
Voltage
9 - 24 V AC / DC +10%
Breaking resistance
3.500 N
Operating mode
Open-circuit principle
Max. operating temperature
55 °C
Min. operating temperature
-10 °C
Adjustment range of latch
2 mm
Unlocking
mechanical
Latch engagement depth
5,4 mm
Latch spring force
~ 30 N
Endurance rating
250.000
Preload unlocking
12V AC: 250 N, 24V AC: 350 N, 12V/24 V DC: 50 N
