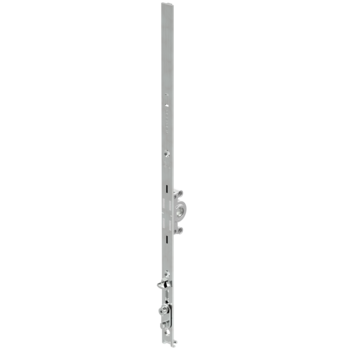

G-22001-00-0-1 | FHH gear 15BS/with tilt/SRH450-550 HH155
Part No.G-22001-00-0-1
EAN 4015596888532
Area of application
Window technology
Area of application (specified)
Tilt&Turn
Application system
UNI-JET, EURO-JET
Product type
Gear
Description of finish
ferGUard*silver
Gross weight
0.211 KG
Packing unit
10 EA
Minimum ordering unit
1 EA
No content available
Attributes
Sash rebate height
450 - 550 mm
Backset
15 mm
Rotational range of handle
180°
Clearance behind backset
12,4 mm
Interior square of follower
7 mm
Locking type
1 eccentric bolt
Profile material
Aluminium, Holz, PVC
Type of faceplate
Flachstulp
Handle position
fixed
Furnishing
16 mm
Faceplate end
Square
Faceplate length
390 mm
Faceplate dimension (in mm)
16 x 2,25
Fixed handle height (dim HH)
155 mm
