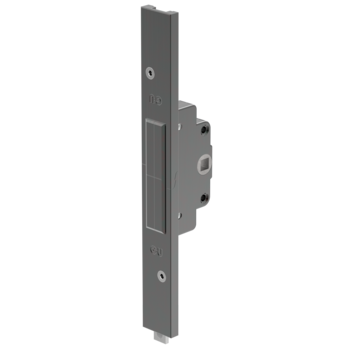

6-25948-35-0-6 | Mill-in gear JET Alu 90 degrees
Part No.6-25948-35-0-6
EAN 4015596656247
Area of application
Window technology
Area of application (specified)
Horizontal-Pivot, Vertical-Pivot, Turn-Only
Application system
UNITAS 18, UNITAS 18/3, UNITAS 88, ALU-JET
Product type
Insertable gear
Description of finish
Black
Gross weight
0.301 KG
Packing unit
2 EA
Minimum ordering unit
1 EA
1 Version found

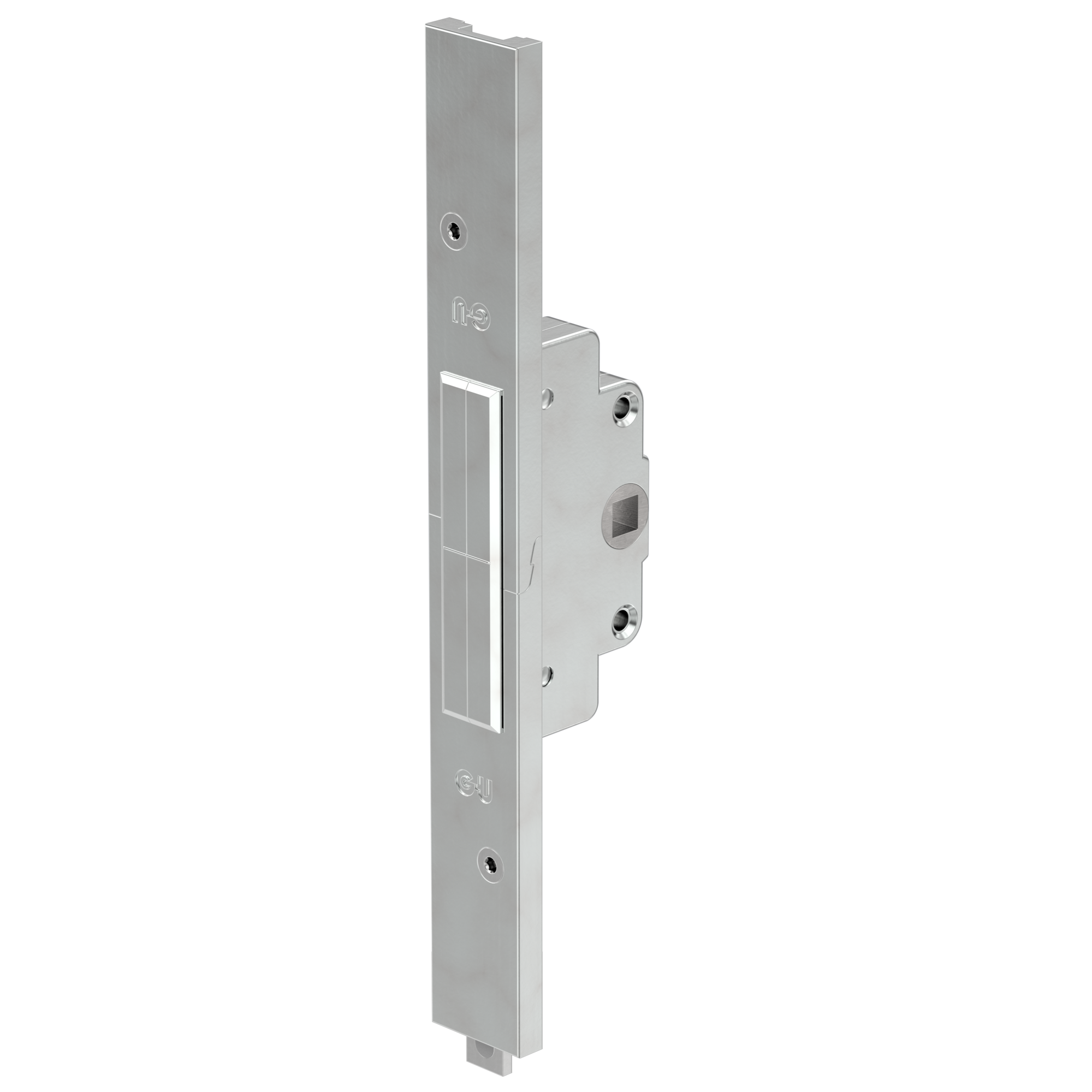

6-25948-35-0-1 | Insertable gear | MILL-IN GEAR F35 90° W/O WOSD
Part No.6-25948-35-0-1
EAN4015596625861
No content available
Attributes
Rotational range of handle
90°
Furnishing
Alu Euro-groove 16/20
Backset
35 mm
Handle position
variabel
Clearance behind backset
6,5 mm
Interior square of follower
7 mm
Profile material
Aluminium
Faceplate dimension (in mm)
24 x 6,5 x 6,5
Type of faceplate
U-Stulp
Faceplate end
Square
Faceplate length
200 mm
Opening direction of hinges
Non-handed
