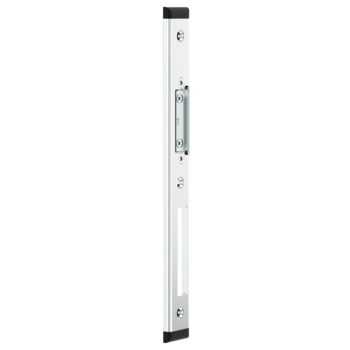

6-38679-02-L-1 | Striker-U24x6/146/216/AT/NL9/ENut6/Est05
Part No.6-38679-02-L-1
EAN 4015596275271
Area of application
Door technology
Area of application (specified)
Turn-Only
Application system
SECURY
Product type
L&D striker
Description of finish
ferGUard*silver
Gross weight
0.13 KG
Packing unit
5 EA
Minimum ordering unit
1 EA
1 Version found

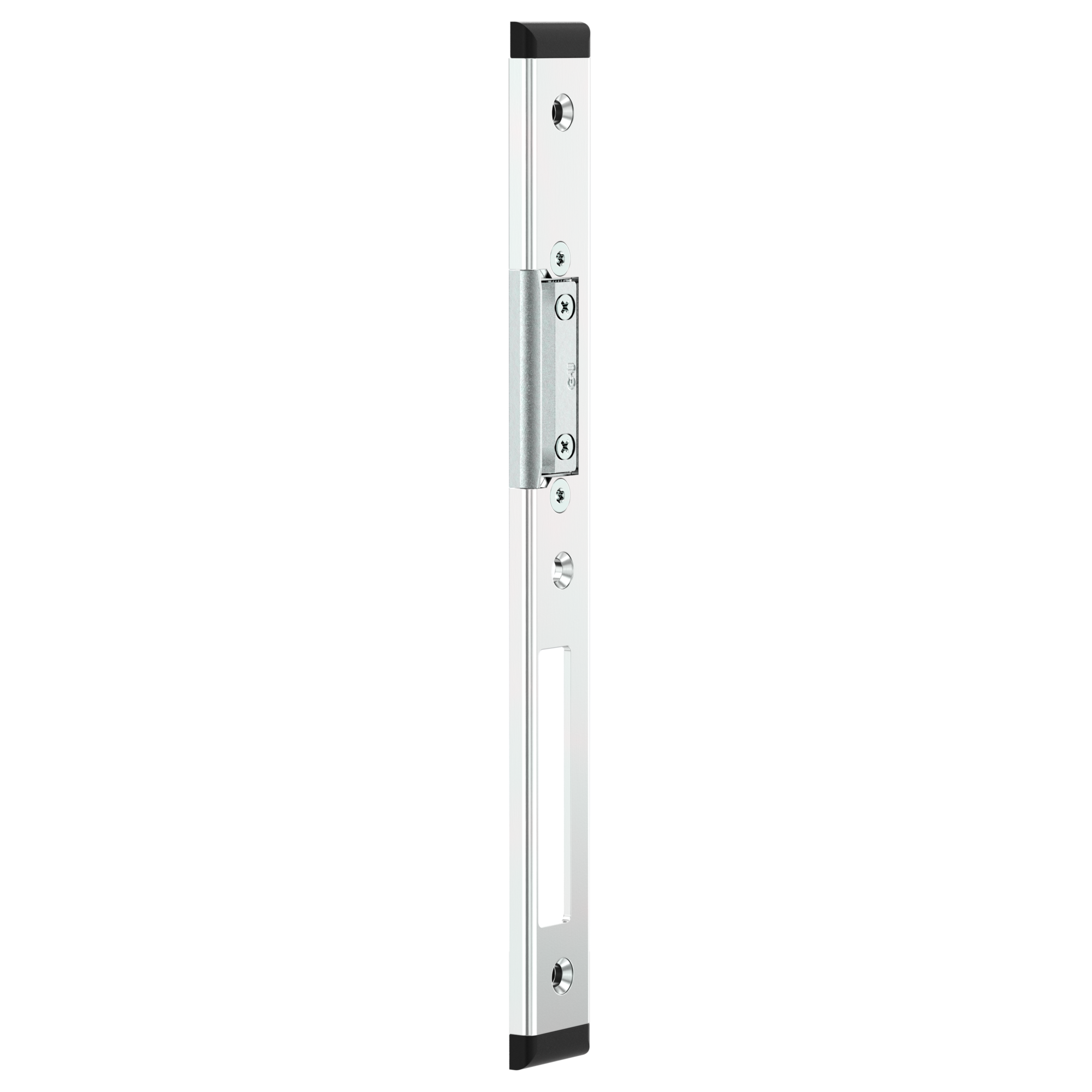

6-38679-02-R-1 | L&D striker | Striker-U24x6/146/216/AT/NL9/ENut6/Est05
Part No.6-38679-02-R-1
EAN4015596275288
No content available
Attributes
Axis
9 mm
Interchangeable latch piece
Yes
Electric strike
No
Latch setting
Interchangeable latch piece
Clearance
12 mm
Centre of latch
146 mm
Profile dimension
24 x 6 x 6 x 2
Profile end
with coating
Profile length
216,5 mm
Profile material
Holz
Frame groove/Rebate
Euro-groove 6 / 8 x 4
Screw axis
12 mm
Accessory profile
U profile
Opening direction of hinges
Left
