6-31020-24-0-5 | Lift&Slide gear 37.5, lockable with R22
Part No.6-31020-24-0-5
EAN 4015596883865
Area of application
Window technology
Area of application (specified)
lift slide
Application system
GU-934, GU-937
Product type
Lift&Slide gear
Description of finish
UC5 dark bronze anodised
Gross weight
1.876 KG
Packing unit
1 EA
Minimum ordering unit
1 EA
1 Version found

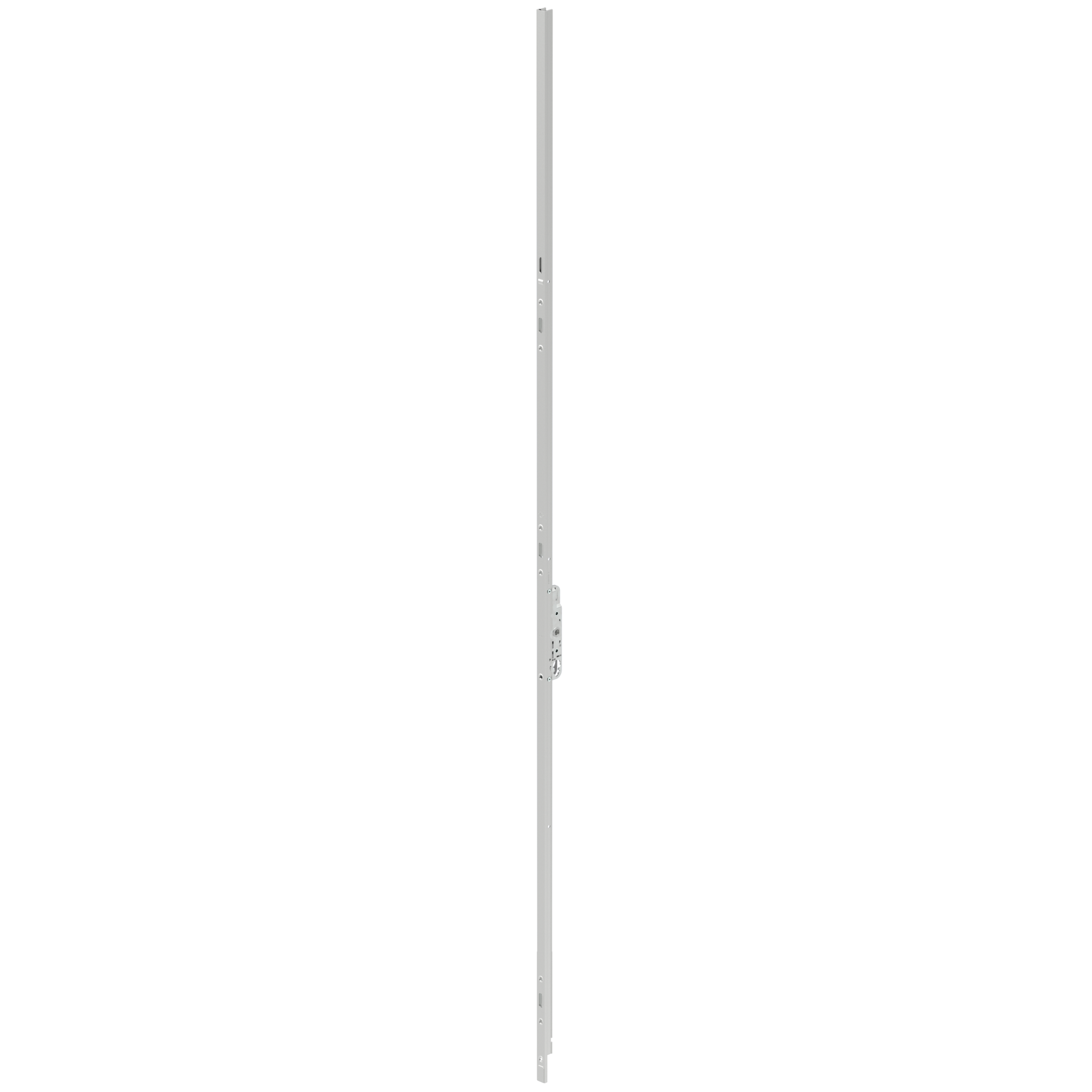

6-31020-24-0-1 | Lift&Slide gear | Lift-locking gear 37.5, lockable, RC22
Part No.6-31020-24-0-1
EAN4015596883858
No content available
Attributes
Lockable
Yes
Backset
37,5 mm
Rotational range of handle
180°
Handle position
fixed
Clearance behind backset
14,5 mm
Length of cover rail
2270 mm
Dimensions of cover rail
22 mm x 22 mm
Interior square of follower
10 mm
Profile material
Aluminium, Holz, PVC
Cylinder hole-type
Swiss round profile-cylinder RC (Backset = 22 mm)
Type of faceplate
U-Stulp
Faceplate end
Square
Distance between locking points - dimension A (from centre of frame cam at "bottom" to centre of frame cam at "top")
1450 mm
Distance between locking points - dimension B (from centre of frame cam at "bottom" to centre of frame cam in "middle")
980 mm
Locking type
prepared for 3 frame cams
