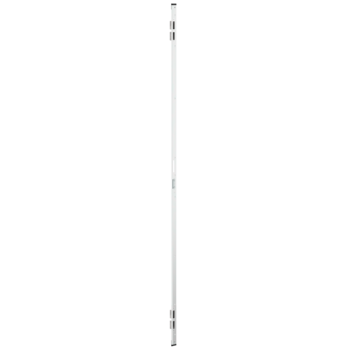

6-40022-GG-L-1 | *Sle-AUT4-DR/U35x6/1750/AT/NL12/Est5M
Part No.6-40022-GG-L-1
EAN 4015596819840
1 Version found

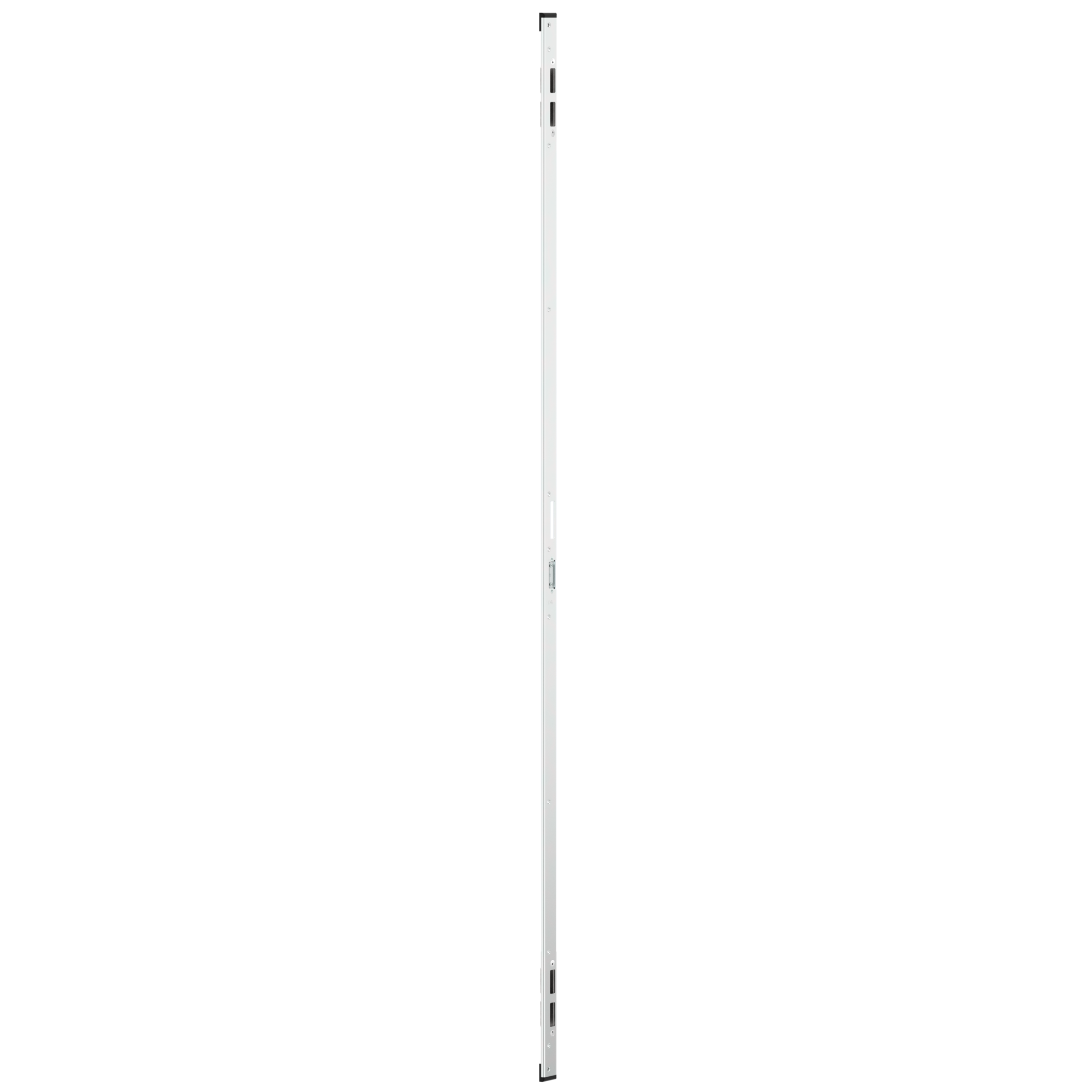

6-40022-GG-R-1 | Lock strip | *Sle-AUT4-DR/U35x6/1750/AT/NL12/Est5M
Part No.6-40022-GG-R-1
EAN4015596819857
No content available
Attributes
Axis
12 mm
Interchangeable latch piece
Yes
Electric strike
No
Adjustable
concealed
Latch setting
Interchangeable latch piece
Top locking position 1 (A1)
730 mm
Marking notch
890 mm
Profile dimension
35 x 8 x 8 x 2
Profile length
1.750 mm
Accessory profile
U profile
Profile end
with coating
Profile material
PVC
Screw axis
22 mm
Locking type
From marking notch upwards and downwards respectively 1 Automatic DR bolt., From...
Show more
From marking notch upwards and downwards respectively 1 Automatic DR bolt., From marking notch upwards and downwards respectively 1 DR bolt., From marking notch upwards and downwards respectively 1 Automatic double latchbolt.
Show less
Bottom locking position 1 (B1)
760 mm
Opening direction of hinges
Left
