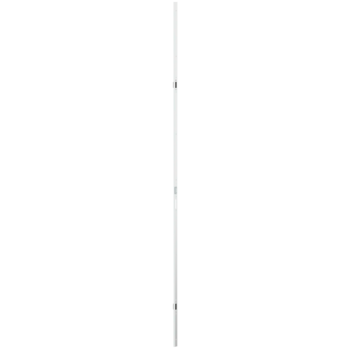

6-40033-BC-R-1 | STR-AUT2-MR2/U30x10/1031/2310/AT/NL13
Part No.6-40033-BC-R-1
EAN 4015596511546
Area of application
Door technology
Area of application (specified)
Turn-Only
Application system
SECURY
Product type
Lock strip
Description of finish
ferGUard*silver
Gross weight
2.134 KG
Packing unit
5 EA
Minimum ordering unit
1 EA
3 Variants found

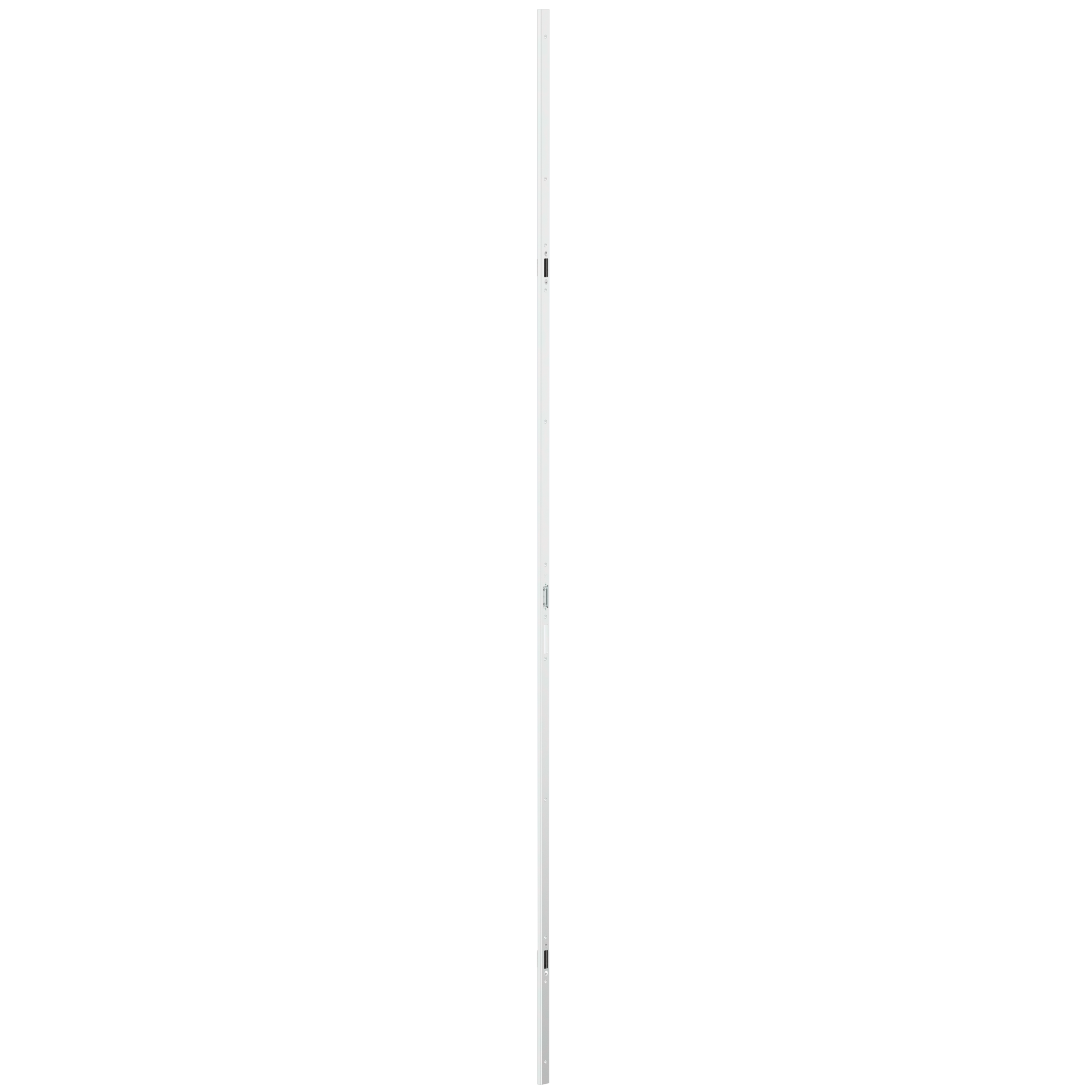

6-40033-BC-L-1 | Lock strip | STR-AUT2-MR2/U30x10/1031/2310/AT/NL13
Part No.6-40033-BC-L-1
EAN4015596511539
6-40033-BC-L-8 | Lock strip | STR-AUT2-MR2/U30x10/1031/2310/AT/NL13
Part No.6-40033-BC-L-8
EAN4015596519061
6-40033-BC-R-8 | Lock strip | STR-AUT2-MR2/U30x10/1031/2310/AT/NL13
Part No.6-40033-BC-R-8
EAN4015596519078
No content available
Attributes
Axis
13 mm
Interchangeable latch piece
Yes
Electric strike
No
Adjustable
concealed
Latch setting
Interchangeable latch piece
Clearance
4 mm
Top locking position 1 (A1)
730 mm
Marking notch
1.031 mm
Profile dimension
30 x 10 x 10 x 2,5
Profile length
2.310 mm
Accessory profile
U profile
Profile end
Square
Profile material
Holz
Screw axis
15 mm
Locking type
From marking notch upwards and downwards respectively 1 Automatic latchbolt., Fr...
Show more
From marking notch upwards and downwards respectively 1 Automatic latchbolt., From marking notch upwards and downwards respectively 1 MR bolts
Show less
Bottom locking position 1 (B1)
760 mm
Opening direction of hinges
Right
