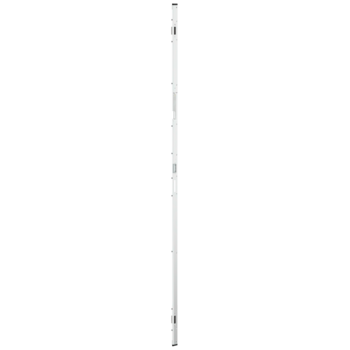

6-40047-AK-R-1 | *Sle-AUT2-MR2/U35x8/890/1750/IS/AT/NL12
Part No.6-40047-AK-R-1
EAN 4015596512840
Area of application
Door technology
Area of application (specified)
Turn-Only
Application system
SECURY
Product type
Lock strip
Description of finish
ferGUard*silver
Gross weight
1.512 KG
Packing unit
5 EA
Minimum ordering unit
1 EA
1 Version found

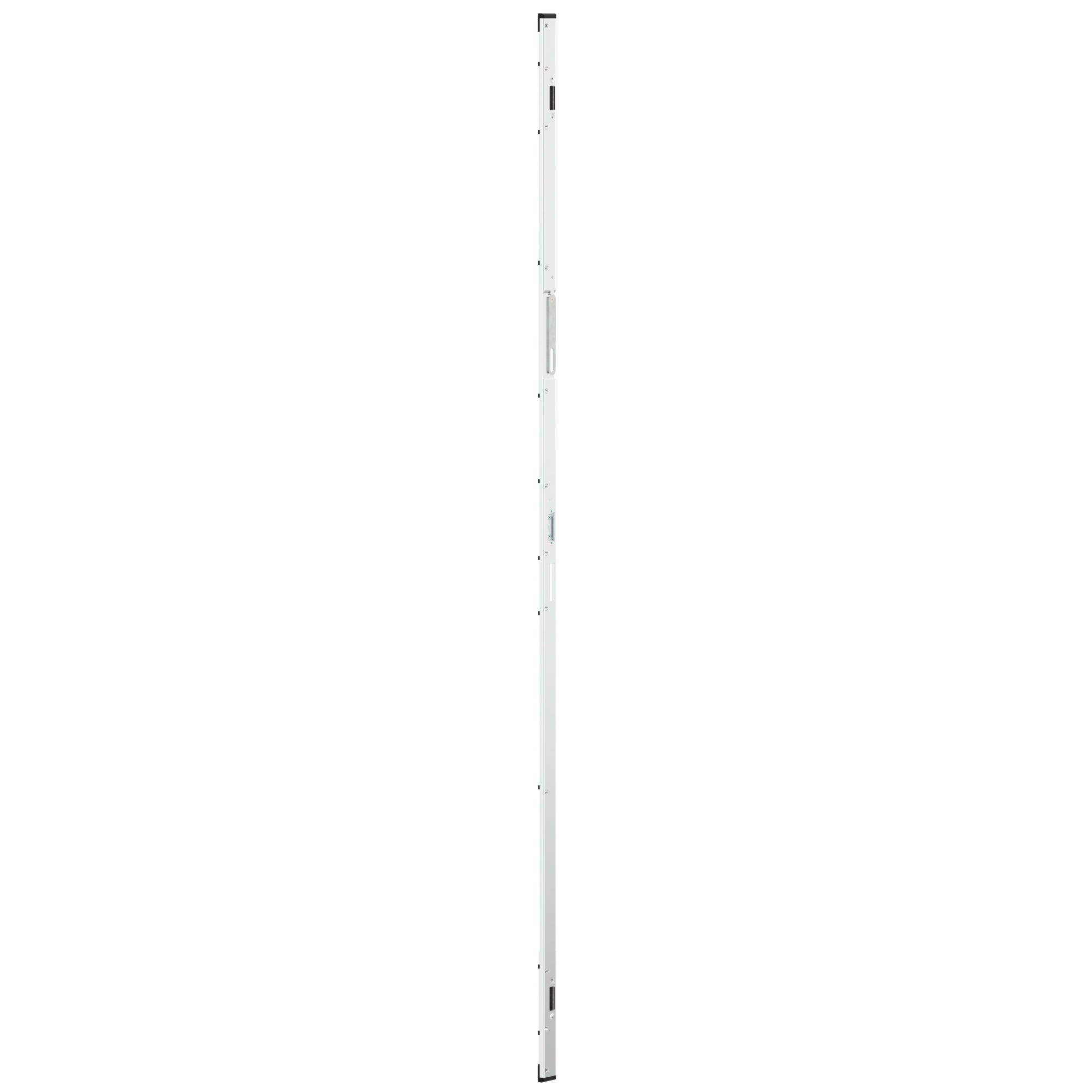

6-40047-AK-L-1 | Lock strip | *Sle-AUT2-MR2/U35x8/890/1750/IS/AT/NL12
Part No.6-40047-AK-L-1
EAN4015596512833
No content available
Attributes
Axis
12 mm
Interchangeable latch piece
Yes
Electric strike
No
Adjustable
concealed
Latch setting
Interchangeable latch piece
Top locking position 1 (A1)
730 mm
Marking notch
890 mm
Profile dimension
35 x 8 x 8 x 2
Profile length
1.750 mm
Accessory profile
U profile
Profile end
with coating
Profile material
PVC
Screw axis
27 mm
Locking type
From marking notch upwards and downwards respectively 1 Automatic latchbolt., Fr...
Show more
From marking notch upwards and downwards respectively 1 Automatic latchbolt., From marking notch upwards and downwards respectively 1 MR bolts
Show less
Safe-T-catch
Yes
Position of safe-T-catch
300 mm
Bottom locking position 1 (B1)
760 mm
Opening direction of hinges
Right
