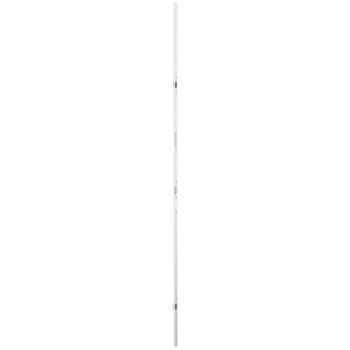

6-40051-AF-R-1 | *Sle-AUT2-MR2/L28x9/1031/2310/IS/AT/NL13
Part No.6-40051-AF-R-1
EAN 4015596546104
Area of application
Door technology
Area of application (specified)
Turn-Only
Application system
SECURY
Product type
Lock strip
Description of finish
ferGUard*silver
Gross weight
2.112 KG
Packing unit
5 EA
Minimum ordering unit
1 EA
1 Version found

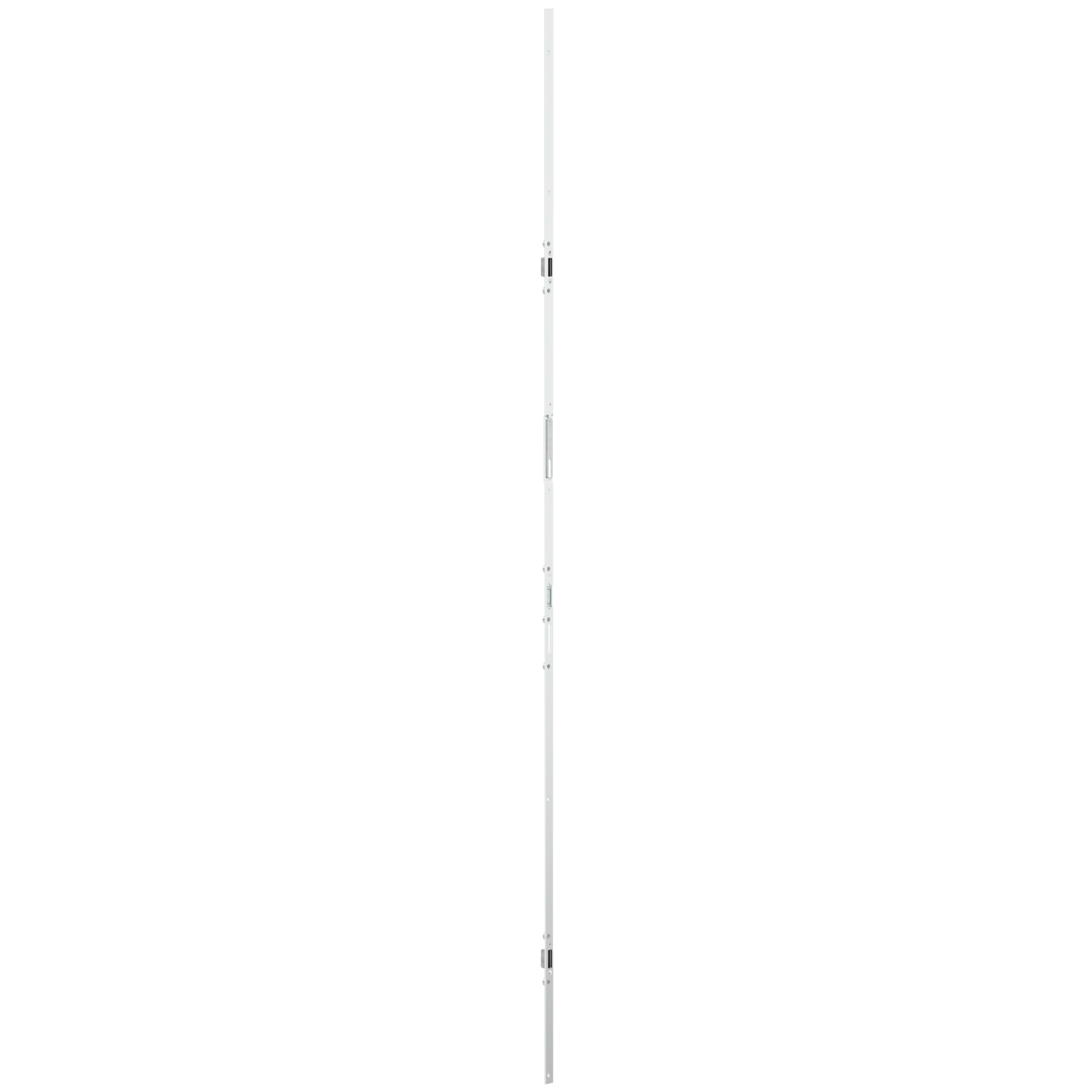

6-40051-AF-L-1 | Lock strip | *Sle-AUT2-MR2/L28x9/1031/2310/IS/AT/NL13
Part No.6-40051-AF-L-1
EAN4015596546098
No content available
Attributes
Axis
13 mm
Interchangeable latch piece
Yes
Electric strike
No
Adjustable
concealed
Latch setting
Interchangeable latch piece
Clearance
4 mm
Top locking position 1 (A1)
730 mm
Marking notch
1.031 mm
Profile dimension
28 x 9 x 3
Profile length
2.310 mm
Accessory profile
L profile
Profile end
Round
Profile material
Holz
Screw axis
18 mm
Locking type
From marking notch upwards and downwards respectively 1 Automatic latchbolt., Fr...
Show more
From marking notch upwards and downwards respectively 1 Automatic latchbolt., From marking notch upwards and downwards respectively 1 MR bolts
Show less
Safe-T-catch
Yes
Position of safe-T-catch
300 mm
Bottom locking position 1 (B1)
760 mm
Opening direction of hinges
Right
