6-40520-AC-0-1 | *Sle-AUT-DR2/U24x6/1750/VP/NL12/730/760
Part No.6-40520-AC-0-1
EAN 4015596534019
Area of application
Door technology
Area of application (specified)
Turn-Only
Application system
SECURY
Product type
Lock strip
Description of finish
ferGUard*silver
Gross weight
1.033 KG
Packing unit
5 EA
Minimum ordering unit
1 EA
1 Version found

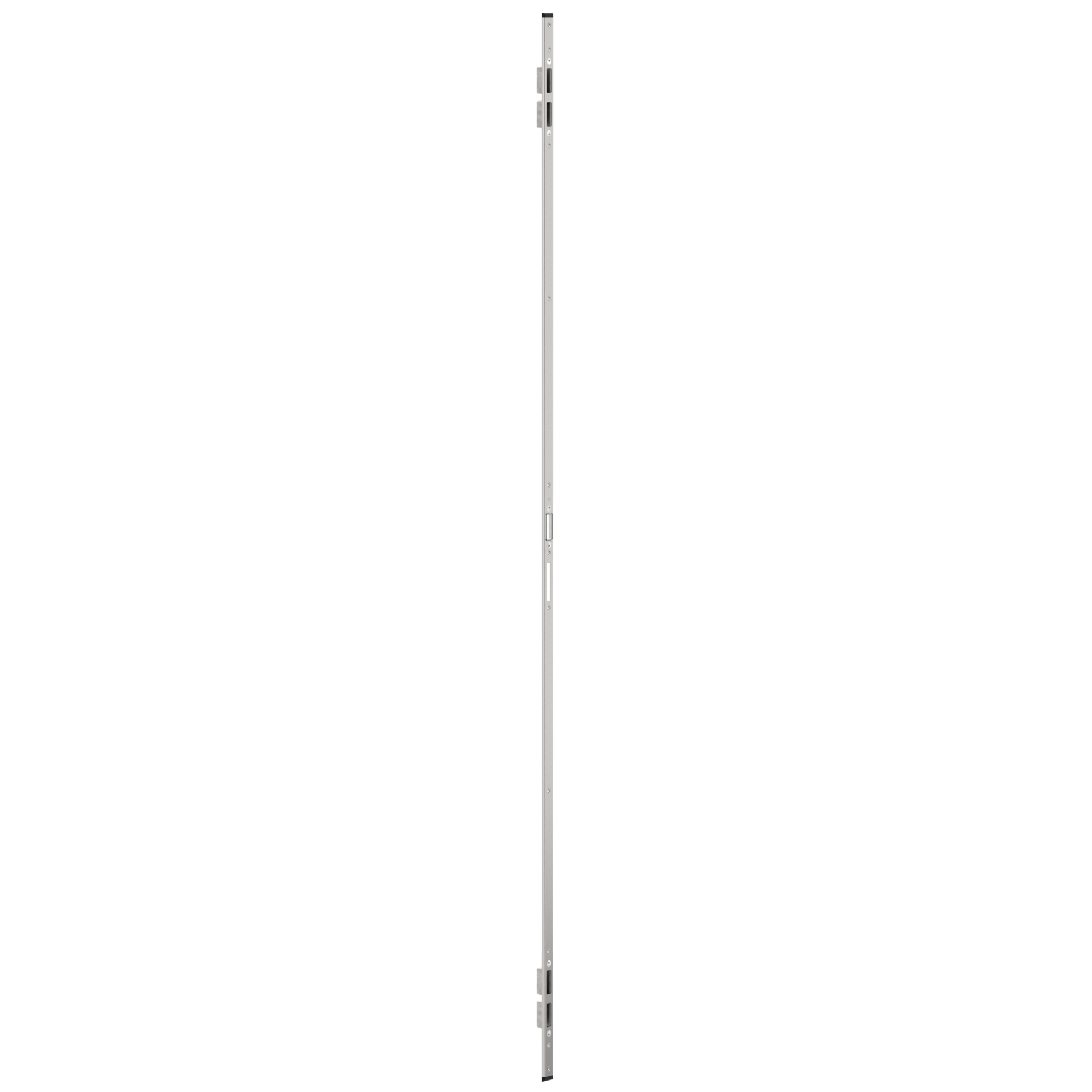

6-40520-AC-0-8 | Lock strip | *Sle-AUT-DR2/U24x6/1750/VP/NL12/730/760
Part No.6-40520-AC-0-8
EAN4015596534026
No content available
Attributes
Frame groove/Rebate
Euro-rebate 24 x 8
Axis
12 mm
Interchangeable latch piece
No
Electric strike
No
Adjustable
concealed
Latch setting
riveted adjusting plate
Clearance
12 mm
Top locking position 1 (A1)
730 mm
Marking notch
890 mm
Profile dimension
24 x 6 x 6 x 2
Profile length
1.750 mm
Accessory profile
U profile
Profile end
with coating
Profile material
Holz, Aluminium
Screw axis
12 mm
Locking type
From marking notch upwards and downwards respectively 1 Automatic double latchbo...
Show more
From marking notch upwards and downwards respectively 1 Automatic double latchbolt., From marking notch upwards and downwards respectively 1 DR bolt., From marking notch upwards and downwards respectively 1 Automatic DR bolt.
Show less
Bottom locking position 1 (B1)
760 mm
