6-40806-02-R-8 | *Sle-AUT2/U30x10/1031/2310/PA/VP/NL13/73
Part No.6-40806-02-R-8
EAN 4015596847959
Area of application
Door technology
Area of application (specified)
Turn-Only
Application system
SECURY
Product type
Lock strip
Description of finish
Ground stainless steel
Gross weight
1.977 KG
Packing unit
5 EA
Minimum ordering unit
1 EA
1 Version found

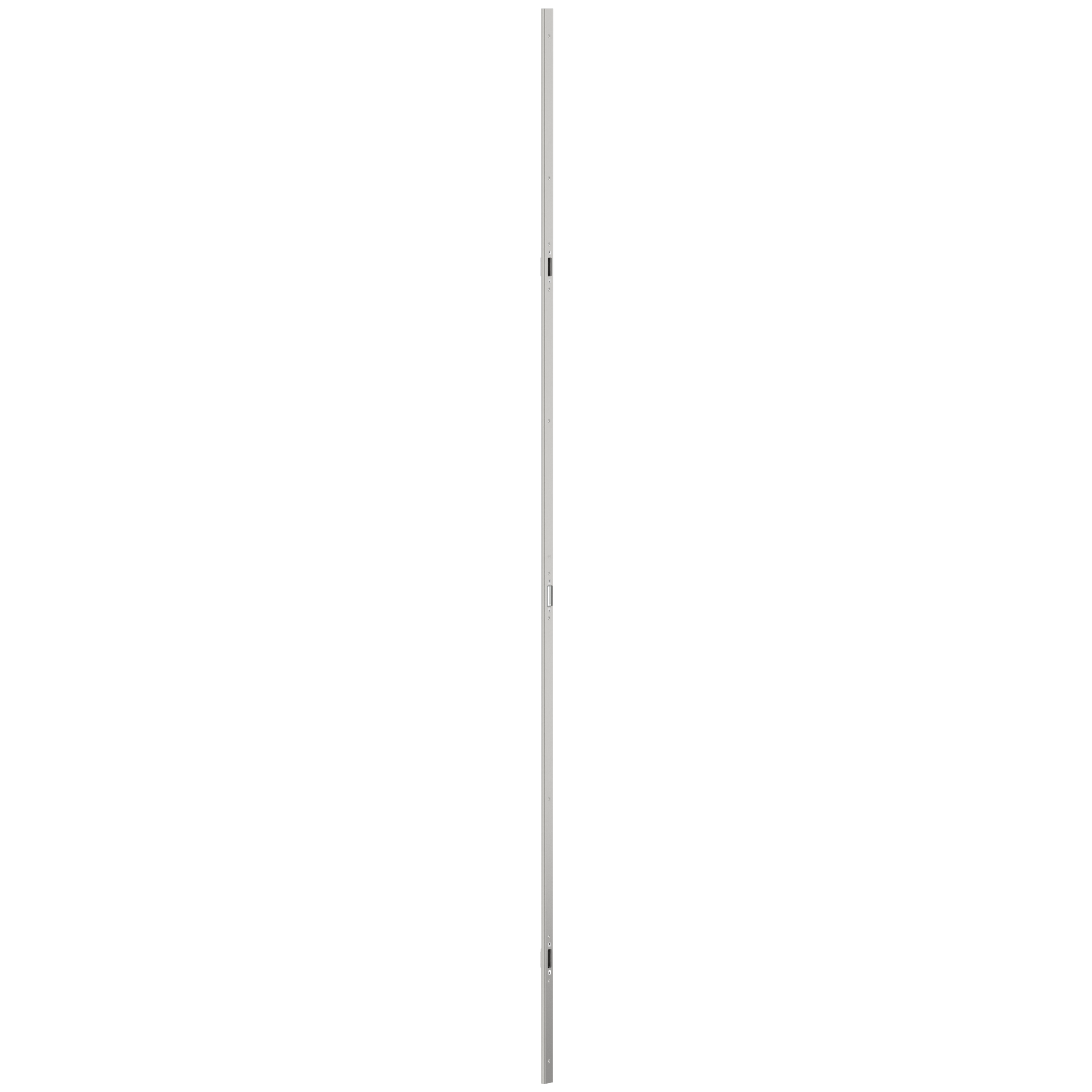

6-40806-02-L-8 | Lock strip | *Sle-AUT2/U30x10/1031/2310/PA/VP/NL13/73
Part No.6-40806-02-L-8
EAN4015596847881
No content available
Attributes
Axis
13 mm
Interchangeable latch piece
No
Electric strike
No
Adjustable
concealed
Latch setting
riveted adjusting plate
Clearance
4 mm
Top locking position 1 (A1)
730 mm
Fire/smoke protection
door-leaf height – for fire-resistant doors
Marking notch
1.031 mm
Panic function
Yes
Profile dimension
30 x 10 x 10 x 2,5
Profile length
2.310 mm
Accessory profile
U profile
Profile end
Square
Profile material
Holz
Screw axis
15 mm
Locking type
From marking notch upwards and downwards respectively 1 Automatic latchbolt.
Bottom locking position 1 (B1)
760 mm
Opening direction of hinges
Right
