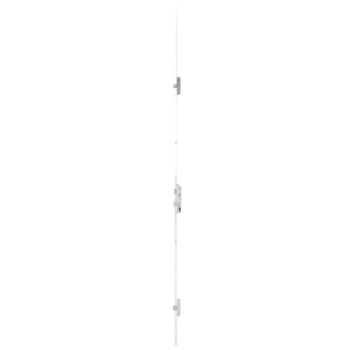

6-28477-34-0-1 | SECA-35/92/10/16/1020/vIS/2285/730/760
Part No.6-28477-34-0-1
EAN 4015596785435
Area of application
Door technology
Area of application (specified)
Locks
Application system
Automate
Product type
Multi-point lock
Description of finish
ferGUard*silver
Gross weight
1,854 G
Packing unit
5 EA
Minimum ordering unit
1 EA
No content available
Attributes
Backset
35 mm
Faceplate dimension (in mm)
16 x 2,5
Hole distance
92 mm
Locking type (material short text)
sf2
Interior square of follower
10 mm
Top locking position 1 (A1)
730 mm
Faceplate length
2.285 mm
Type of faceplate
Flachstulp
Locking system
self-locking
A-opener
optional
Marking notch
1.020 mm
Cylinder hole-type
Profile cylinder
Faceplate end
Square
Locking type
From marking notch upwards and downwards respectively 1 Automatic latchbolt.
Bottom locking position 1 (B1)
760 mm
