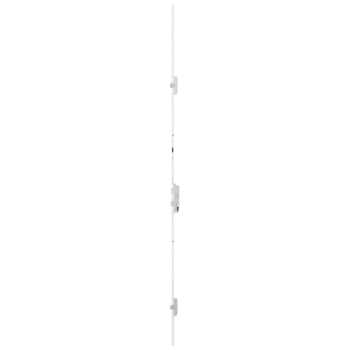

6-28481-31-0-1 | SECA-45/92/8/16/1020/vIS/2285/730/760
Part No.6-28481-31-0-1
EAN 4015596746146
Area of application
Door technology
Area of application (specified)
Locks
Application system
SECURY Automatic
Product type
Multi-point lock
Description of finish
ferGUard*silver
Gross weight
1.95 KG
Packing unit
5 EA
Minimum ordering unit
1 EA
No content available
Attributes
Backset
45 mm
Faceplate dimension (in mm)
16 x 2,5
Hole distance
92 mm
Locking type (material short text)
sf2
Interior square of follower
8 mm
Top locking position 1 (A1)
730 mm
Faceplate length
2.285 mm
Type of faceplate
Flachstulp
Position of safe-T-catch
300 mm
Locking system
self-locking
A-opener
optional
Number of additional locks
2
Marking notch
1.020 mm
Cylinder hole-type
Profile cylinder
Safe-T-catch
Prepared for safe-T-catch
Faceplate end
Square
Locking type
From marking notch upwards and downwards respectively 1 Automatic latchbolt., Se...
Show more
From marking notch upwards and downwards respectively 1 Automatic latchbolt., Self-locking
Show less
Bottom locking position 1 (B1)
760 mm
Number of locking elements
3 St
Version
Prepared for daytime release function
