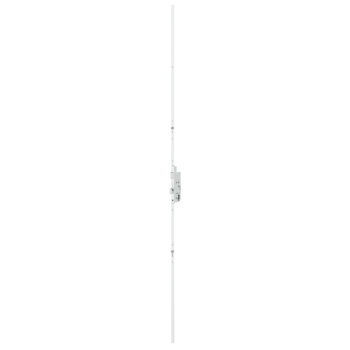

6-32150-03-0-1 | SEC Europa R2 45/78R22/ 8/16/890
Part No.6-32150-03-0-1
EAN 4015596921666
Area of application
Door technology
Area of application (specified)
Locks
Application system
EUROPE
Product type
Multi-point lock
Description of finish
ferGUard*silver
Gross weight
1.717 KG
Packing unit
40 EA
Minimum ordering unit
40 EA
No content available
Attributes
Backset
45 mm
Faceplate dimension (in mm)
16 x 2,5
Hole distance
78 mm
Locking type (material short text)
SZ-R2
Interior square of follower
8 mm
Top locking position 1 (A1)
267,5 mm
Faceplate length
1.830 mm
Type of faceplate
Flachstulp
Locking system
manually locking
Marking notch
890 mm
Mechanically coupled
Extendable at top+bottom
Cylinder hole-type
Round cylinder
Faceplate end
Square
Locking type
From marking notch upwards and downwards respectively 1 roller-cams.
Bottom locking position 1 (B1)
402,5 mm
