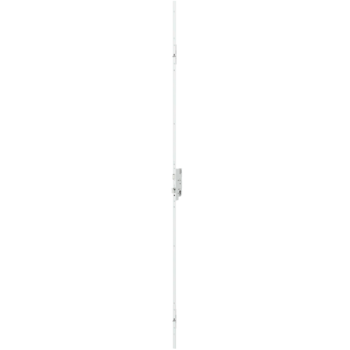

6-32480-01-0-1 | SECURY Europa S2 50/72/8/20/1047 770/868
Part No.6-32480-01-0-1
EAN 4015596902955
Area of application
Door technology
Area of application (specified)
Locks
Application system
EUROPE
Product type
Multi-point lock
Description of finish
ferGUard*silver
Gross weight
1.875 KG
Packing unit
40 EA
Minimum ordering unit
40 EA
No content available
Attributes
Backset
50 mm
Faceplate dimension (in mm)
20 x 2,5
Hole distance
72 mm
Locking type (material short text)
S2
Interior square of follower
8 mm
Top locking position 1 (A1)
770 mm
Faceplate length
2.150 mm
Type of faceplate
Flachstulp
Locking system
manually locking
Marking notch
1.047 mm
Mechanically coupled
Extendable at top+bottom (crop)
Cylinder hole-type
Profile cylinder
Faceplate end
Square
Locking type
From marking notch upwards and downwards respectively 1 S-deadbolt.
Bottom locking position 1 (B1)
868 mm
