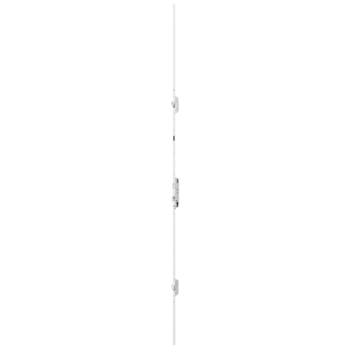

6-32487-01-0-1 | G4L28-16 THTHT [G-18347-22-0-3]
Part No.6-32487-01-0-1
EAN 4015596921840
Area of application
Door technology
Area of application (specified)
Locks
Application system
EUROPE
Product type
Multi-point lock
Description of finish
ferGUard*silver
Gross weight
1.776 KG
Packing unit
40 EA
Minimum ordering unit
40 EA
No content available
Attributes
Backset
28 mm
Faceplate dimension (in mm)
16 x 2,5
Hole distance
92 mm
Locking type (material short text)
SH2
Interior square of follower
8 mm
Top locking position 1 (A1)
568 mm
Faceplate length
2.285 mm
Type of faceplate
Flachstulp
Position of safe-T-catch
345 mm
Locking system
manually locking
Suitable for security level
SKG
Marking notch
1.050 mm
Mechanically coupled
Extendable at top+bottom
SECURY Special features
Plastic lock case
Cylinder hole-type
Profile cylinder
Safe-T-catch
Prepared for safe-T-catch
Faceplate end
Square
Bottom locking position 1 (B1)
660 mm
Backset
28 mm
Hole distance
92 mm
Marking notch
1.050 mm
Mechanically coupled
Extendable at top and bottom
Interior square of follower
8 mm
SECURY Special features
Plastic lock case
Cylinder hole-type
Profile cylinder
Position of safe-T-catch
345 mm
Faceplate dimension (in mm)
16 x 2,5
Type of faceplate
Flachstulp
Faceplate end
Square
Faceplate length
2.285 mm
Locking type
From marking notch upwards and downwards 1 SH bolts respectively.
Top locking position 1 (A1)
568 mm
Bottom locking position 1 (B1)
660 mm
