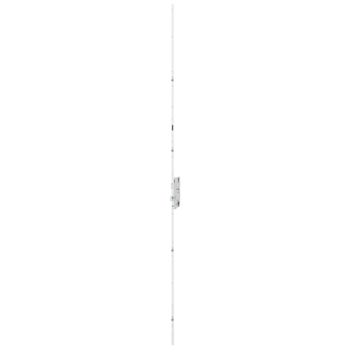

6-32580-03-D-1 | *SECE-R4-55/92/8/16/1050/STC/2285/267,5
Part No.6-32580-03-D-1
EAN 4015596500700
Area of application
Door technology
Area of application (specified)
Locks
Application system
EUROPE
Product type
Multi-point lock
Description of finish
ferGUard*silver
Gross weight
1.711 KG
Packing unit
40 EA
Minimum ordering unit
40 EA
1 Version found
6-32580-03-0-1 | Multi-point lock | Sec.E R4 55/92/8/16/1050/2285 STC415
Part No.6-32580-03-0-1
EAN4015596073358
No content available
Attributes
Backset
55 mm
Faceplate dimension (in mm)
16 x 2,5
Hole distance
92 mm
Locking type (material short text)
SZ-R4
Interior square of follower
8 mm
Top locking position 1 (A1)
267,5 mm
Top locking position 2 (A2)
737,5 mm
Faceplate length
2.285 mm
Type of faceplate
Flachstulp
Position of safe-T-catch
345 mm
Locking system
manually locking
Marking notch
1.050 mm
Mechanically coupled
Extendable at top
Cylinder hole-type
Profile cylinder
Safe-T-catch
Prepared for safe-T-catch
Faceplate end
Square
Locking type
From marking notch upwards and downwards respectively 2 roller-cams.
Bottom locking position 1 (B1)
402,5 mm
Bottom locking position 2 (B2)
872,5 mm
