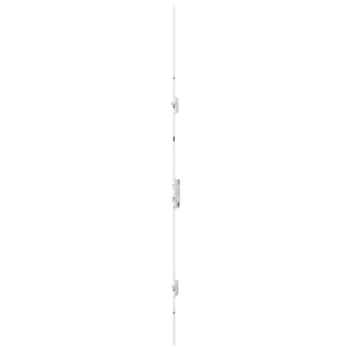

6-32602-04-0-1 | SEC Europa SH/R 40/92/8/16 /1050 STC345
Part No.6-32602-04-0-1
EAN 4015596963697
Area of application
Door technology
Area of application (specified)
Locks
Application system
EUROPE
Product type
Multi-point lock
Description of finish
ferGUard*silver
Gross weight
1.973 KG
Packing unit
40 EA
Minimum ordering unit
40 EA
No content available
Attributes
Backset
40 mm
Faceplate dimension (in mm)
16 x 2,5
Hole distance
92 mm
Locking type (material short text)
SH/SZ-R
Interior square of follower
8 mm
Top locking position 1 (A1)
568 mm
Top locking position 2 (A2)
757 mm
Faceplate length
2.285 mm
Type of faceplate
Flachstulp
Position of safe-T-catch
345 mm
Locking system
manually locking
Marking notch
1.050 mm
Mechanically coupled
Extendable at top+bottom
Cylinder hole-type
Profile cylinder
Safe-T-catch
Prepared for safe-T-catch
Faceplate end
Square
Locking type
From marking notch upwards and downwards respectively first 1 SH bolt then 1 rol...
Show more
From marking notch upwards and downwards respectively first 1 SH bolt then 1 roller-cam.
Show less
Bottom locking position 1 (B1)
660 mm
Bottom locking position 2 (B2)
821 mm
