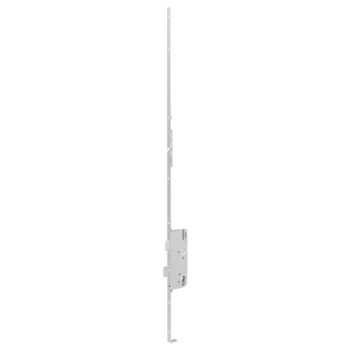

6-32682-01-0-1 | SEC Europa S1 55/92/8/16 /300 337 /1087
Part No.6-32682-01-0-1
EAN 4015596921758
Area of application
Door technology
Area of application (specified)
Locks
Application system
EUROPE
Product type
Multi-point lock
Description of finish
ferGUard*silver
Gross weight
0.939 KG
Packing unit
40 EA
Minimum ordering unit
40 EA
No content available
Attributes
Backset
55 mm
Faceplate dimension (in mm)
16 x 2,5
Hole distance
92 mm
Locking type (material short text)
S1
Interior square of follower
8 mm
Top locking position 1 (A1)
337 mm
Faceplate length
1.087 mm
Type of faceplate
Flachstulp
Locking system
manually locking
Marking notch
300 mm
Mechanically coupled
Extendable at top
Cylinder hole-type
Profile cylinder
Faceplate end
Square
Locking type
From marking notch upwards or downwards 1 S-deadbolt.
