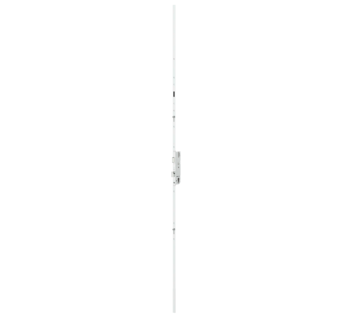

6-32686-01-0-1 | Europa R2 Act 35/92 8-16-ADJ-1830 PZ FG
Part No.6-32686-01-0-1
EAN 4015596921963
Area of application
Door technology
Area of application (specified)
Locks
Application system
EUROPE
Product type
Multi-point lock
Description of finish
ferGUard*silver
Gross weight
1.319 KG
Packing unit
5 EA
Minimum ordering unit
5 EA
No content available
Attributes
Backset
35 mm
Faceplate dimension (in mm)
16 x 2,5
Hole distance
92 mm
Locking type (material short text)
SZ-R2
Interior square of follower
8 mm
Top locking position 1 (A1)
267,5 mm
Faceplate length
1.830 mm
Type of faceplate
Flachstulp
Position of safe-T-catch
415 mm
Locking system
manually locking
Marking notch
890 mm
Mechanically coupled
Extendable at top+bottom
Cylinder hole-type
Profile cylinder
Safe-T-catch
Prepared for safe-T-catch
Faceplate end
Square
Locking type
From marking notch upwards and downwards respectively 1 roller-cams.
Bottom locking position 1 (B1)
402,5 mm
