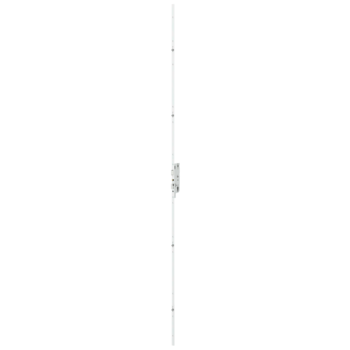

6-33160-02-D-1 | GU Fercomatic R4 40/70/7/16/1050/2110
Part No.6-33160-02-D-1
EAN 4015596960498
Area of application
Door technology
Area of application (specified)
Locks
Application system
FERCOMATIC
Product type
Multi-point lock
Description of finish
ferGUard*silver
Gross weight
1.443 KG
Packing unit
40 EA
Minimum ordering unit
40 EA
1 Version found
6-33160-02-0-1 | Multi-point lock | G.U Fercomatic R4 40/70/7/16/1050/2110
Part No.6-33160-02-0-1
EAN4015596946041
No content available
Attributes
Backset
40 mm
Faceplate dimension (in mm)
16 x 2,5
Hole distance
70 mm
Locking type (material short text)
SZ-R4
Interior square of follower
7 mm
Top locking position 1 (A1)
383 mm
Top locking position 2 (A2)
785 mm
Faceplate length
2.110 mm
Type of faceplate
Flachstulp
Locking system
manually locking
Marking notch
1.050 mm
Mechanically coupled
Extendable at top (crop)
Cylinder hole-type
Profile cylinder
Faceplate end
Square
Locking type
From marking notch upwards and downwards respectively 2 roller-cams.
Bottom locking position 1 (B1)
421 mm
Bottom locking position 2 (B2)
823 mm
