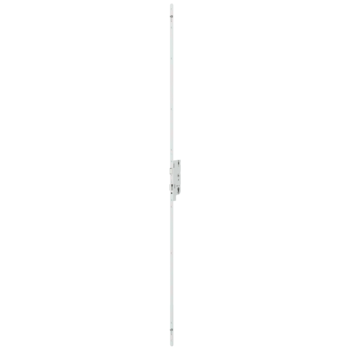

6-33166-05-0-1 | G.U Europa R2 50/70/7/18/900/1800 rd.
Part No.6-33166-05-0-1
EAN 4015596939678
Area of application
Door technology
Area of application (specified)
Locks
Application system
GU Europe
Product type
Multi-point lock
Description of finish
ferGUard*silver
Gross weight
1.523 KG
Packing unit
40 EA
Minimum ordering unit
40 EA
No content available
Attributes
Backset
50 mm
Faceplate dimension (in mm)
16 x 2,5
Hole distance
70 mm
Locking type (material short text)
SZ-R2
Interior square of follower
7 mm
Top locking position 1 (A1)
821 mm
Faceplate length
1.800 mm
Type of faceplate
Flachstulp
Locking system
manually locking
Marking notch
900 mm
Cylinder hole-type
Profile cylinder
Faceplate end
Round
Locking type
From marking notch upwards and downwards respectively 1 roller-cams.
Bottom locking position 1 (B1)
825 mm
