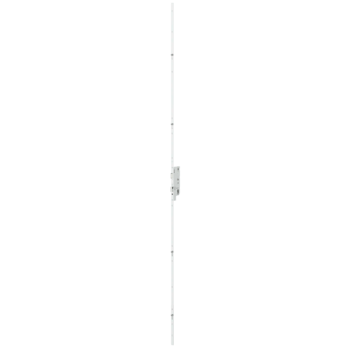

6-33604-01-0-1 | G.U Europa R4 50/70/7/16/1045/2150
Part No.6-33604-01-0-1
EAN 4015596941589
Area of application
Door technology
Area of application (specified)
Locks
Application system
GU Europe
Product type
Multi-point lock
Description of finish
ferGUard*silver
Gross weight
1.549 KG
Packing unit
40 EA
Minimum ordering unit
40 EA
No content available
Attributes
Backset
50 mm
Faceplate dimension (in mm)
16 x 2,5
Hole distance
70 mm
Locking type (material short text)
SZ-R4
Interior square of follower
7 mm
Top locking position 1 (A1)
337,5 mm
Top locking position 2 (A2)
770,5 mm
Faceplate length
2.150 mm
Type of faceplate
Flachstulp
Locking system
manual-locking
Faceplate end
Square
Bottom locking position 1 (B1)
465,5 mm
Bottom locking position 2 (B2)
867,5 mm
Locking type
From marking notch upwards and downwards respectively 2 roller-cams.
Marking notch
1.045 mm
Mechanically coupled
Extendable at top
Cylinder hole-type
Profile cylinder
Opening direction of hinges
Left, Right, Left/right, Non-handed
