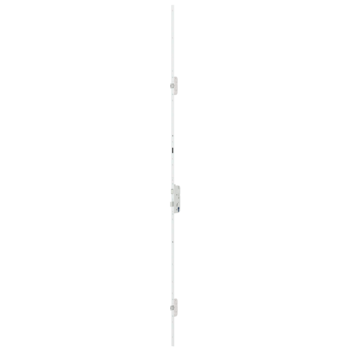

6-36037-85-0-1 | SecA-55/92/10/20/1020/vIS/2285/730/760
Part No.6-36037-85-0-1
EAN 4015596417091
Area of application
Door technology
Area of application (specified)
Locks
Application system
Automate
Product type
Multi-point lock
Description of finish
ferGUard*silver
Gross weight
2.291 KG
Packing unit
5 EA
Minimum ordering unit
1 EA
1 Version found

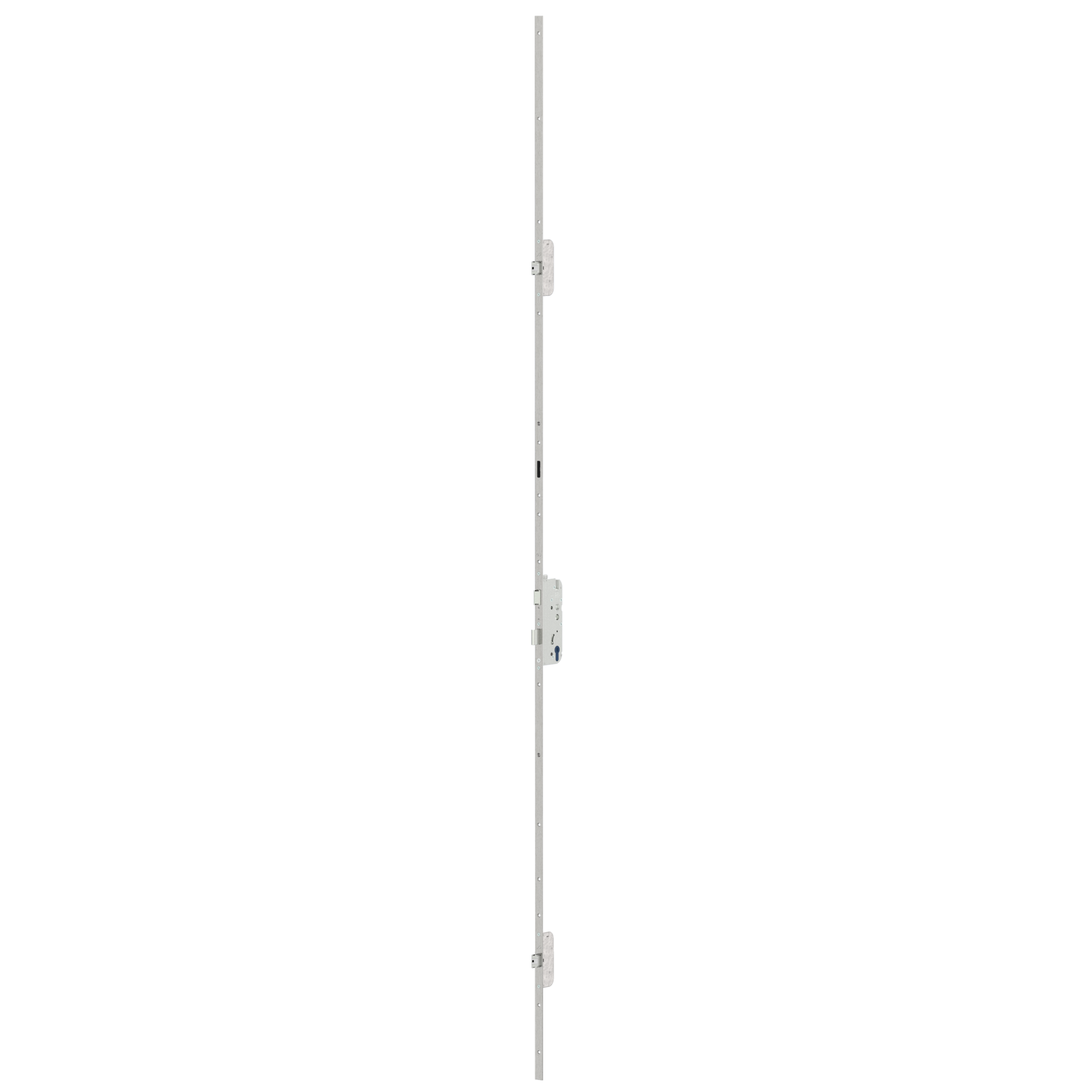

6-36037-85-0-8 | Multi-point lock | SecA-55/92/10/20/1020/vIS/2285/730/760
Part No.6-36037-85-0-8
EAN4015596471819
No content available
Attributes
Backset
55 mm
Faceplate dimension (in mm)
20 x 2,5
Hole distance
92 mm
Locking type (material short text)
sf2
Interior square of follower
10 mm
Top locking position 1 (A1)
730 mm
Faceplate length
2.285 mm
Type of faceplate
Flachstulp
Locking system
self-locking
A-opener
optional
Number of additional locks
2
Marking notch
1.020 mm
Cylinder hole-type
Profile cylinder
Faceplate end
Square
Locking type
From marking notch upwards and downwards respectively 1 Automatic latchbolt.
Bottom locking position 1 (B1)
760 mm
Number of locking elements
3 St
