6-37298-13-0-1 | SecA3-35/92/8/24x6/1020/vIS/2285/730/250
Part No.6-37298-13-0-1
EAN 4015596408372
Area of application
Door technology
Area of application (specified)
Locks
Application system
Automatic 3
Product type

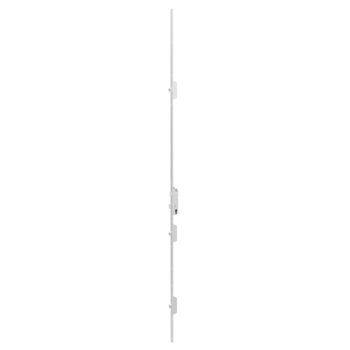

Multi-point lock
Description of finish
ferGUard*silver
Gross weight
3.355 KG
Packing unit
2 EA
Minimum ordering unit
1 EA
No content available
Attributes
Backset
35 mm
Faceplate dimension (in mm)
24 x 6 x 6 x 2,5
Hole distance
92 mm
Locking type (material short text)
sf3
Interior square of follower
8 mm
Top locking position 1 (A1)
730 mm
Faceplate length
2.285 mm
Type of faceplate
U-Stulp
Position of safe-T-catch
300 mm
Locking system
self-locking
A-opener
optional
Marking notch
1.020 mm
Cylinder hole-type
Profile cylinder
Safe-T-catch
Prepared for safe-T-catch
Faceplate end
Square
Locking type
From marking notch upwards 1 Automatic latchbolt and downwards 2 Automatic latch...
Show more
From marking notch upwards 1 Automatic latchbolt and downwards 2 Automatic latchbolts.
Show less
Bottom locking position 1 (B1)
250 mm
Bottom locking position 2 (B2)
760 mm
