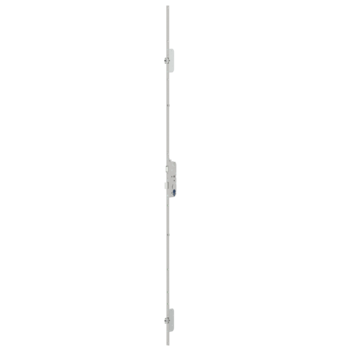

6-37509-AF-0-8 | SecA-45/78RZ/9FH/16/1750/580/760
Part No.6-37509-AF-0-8
EAN 4015596435750
Area of application
Door technology
Area of application (specified)
Locks
Application system
Automate
Product type
Multi-point lock
Description of finish
Ground stainless steel
Gross weight
2.213 KG
Packing unit
2 EA
Minimum ordering unit
1 EA
No content available
Attributes
Backset
45 mm
Faceplate dimension (in mm)
16 x 2,5
Hole distance
78 mm
Locking type (material short text)
sf2
Interior square of follower
9 mm
Top locking position 1 (A1)
580 mm
Faceplate length
1.750 mm
Type of faceplate
Flachstulp
Locking system
self-locking
Fire/smoke protection
door-leaf height – for fire-resistant doors
A-opener
optional
Marking notch
890 mm
Cylinder hole-type
Round cylinder
Faceplate end
Square
Locking type
From marking notch upwards and downwards respectively 1 Automatic latchbolt.
Bottom locking position 1 (B1)
760 mm
