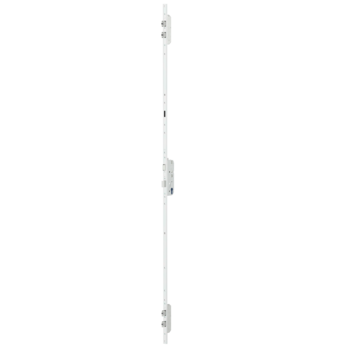

6-37511-10-0-1 | SecA4-50/92/8/24x6/vIS/1750/730/760
Part No.6-37511-10-0-1
EAN 4015596185921
Area of application
Door technology
Area of application (specified)
Locks
Application system
Automatic 4
Product type
Multi-point lock
Description of finish
ferGUard*silver
Gross weight
2.67 KG
Packing unit
2 EA
Minimum ordering unit
1 EA
18 Variants found
6-37511-01-0-1 | Multi-point lock | SecA4-65/92/10/20/vIS/1750/730/760/RK
Part No.6-37511-01-0-1
EAN4015596185839
6-37511-02-0-1 | Multi-point lock | SecA4-80/92/10/20/vIS/1750/730/760/RK
Part No.6-37511-02-0-1
EAN4015596185846
6-37511-03-0-1 | Multi-point lock | SecA4-55/92/10/20/vIS/1750/730/760/RK
Part No.6-37511-03-0-1
EAN4015596185853
6-37511-04-0-1 | Multi-point lock | SecA4-65/92/10/24/vIS/1750/730/760/RK
Part No.6-37511-04-0-1
EAN4015596185860
6-37511-05-0-1 | Multi-point lock | SecA4-80/92/10/24/vIS/1750/730/760/RK
Part No.6-37511-05-0-1
EAN4015596185877
6-37511-06-0-1 | Multi-point lock | SecA4-55/92/10/24/vIS/1750/730/760/RK
Part No.6-37511-06-0-1
EAN4015596185884
6-37511-07-0-1 | Multi-point lock | SecA4-50/92/10/24/vIS/1750/730/760/RK
Part No.6-37511-07-0-1
EAN4015596185891
6-37511-08-0-1 | Multi-point lock | SecA4-65/92/8/16/vIS/1750/730/760
Part No.6-37511-08-0-1
EAN4015596185907
6-37511-09-0-1 | Multi-point lock | SecA4-55/92/8/24x6/vIS/1750/730/760
Part No.6-37511-09-0-1
EAN4015596185914
6-37511-11-0-1 | Multi-point lock | SecA4-45/92/10/20/vIS/1750/730/760
Part No.6-37511-11-0-1
EAN4015596256874
6-37511-12-0-1 | Multi-point lock | SecA4-45/92/10/24x6/vIS/1750/730/760
Part No.6-37511-12-0-1
EAN4015596270368
6-37511-13-0-1 | Multi-point lock | SecA4-45/92/8/24x6/vIS/1750/730/760
Part No.6-37511-13-0-1
EAN4015596266965
6-37511-13-0-8 | Multi-point lock | SecA4-45/92/8/24x6/vIS/1750/730/760
Part No.6-37511-13-0-8
EAN4015596424730
6-37511-14-0-1 | Multi-point lock | SecA4-35/92/8/24x6/vIS/1750/730/760
Part No.6-37511-14-0-1
EAN4015596227997
6-37511-14-0-8 | Multi-point lock | SecA4-35/92/8/24x6/vIS/1750/730/760
Part No.6-37511-14-0-8
EAN4015596391230
6-37511-15-0-1 | Multi-point lock | SecA4-35/92/10/24x6/vIS/1750/730/760
Part No.6-37511-15-0-1
EAN4015596270382
6-37511-16-0-1 | Multi-point lock | SecA4-35/92/8/24/vIS/1750/730/760
Part No.6-37511-16-0-1
EAN4015596270405
6-37511-16-0-8 | Multi-point lock | SecA4-35/92/8/24/vIS/1750/730/760
Part No.6-37511-16-0-8
EAN4015596435903
View all variants
No content available
Attributes
Backset
50 mm
Faceplate dimension (in mm)
24 x 6 x 6 x 2,5
Hole distance
92 mm
Locking type (material short text)
sff2
Interior square of follower
8 mm
Top locking position 1 (A1)
730 mm
Faceplate length
1.750 mm
Type of faceplate
U-Stulp
Locking system
self-locking
A-opener
optional
Marking notch
890 mm
Cylinder hole-type
Profile cylinder
Faceplate end
Square
Locking type
From marking notch upwards and downwards respectively 1 Automatic double latchbo...
Show more
From marking notch upwards and downwards respectively 1 Automatic double latchbolt.
Show less
Bottom locking position 1 (B1)
760 mm
