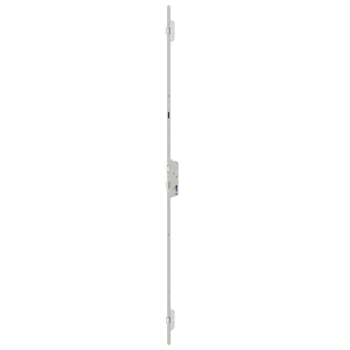

6-37517-01-0-8 | SecDZ MR2-55/72/8/20/vIS/1750/730/760/RK
Part No.6-37517-01-0-8
EAN 4015596476791
Area of application
Door technology
Area of application (specified)
Locks
Application system
SECURY V
Product type
Multi-point lock
Description of finish
Ground stainless steel
Gross weight
2.227 KG
Packing unit
2 EA
Minimum ordering unit
1 EA
1 Version found

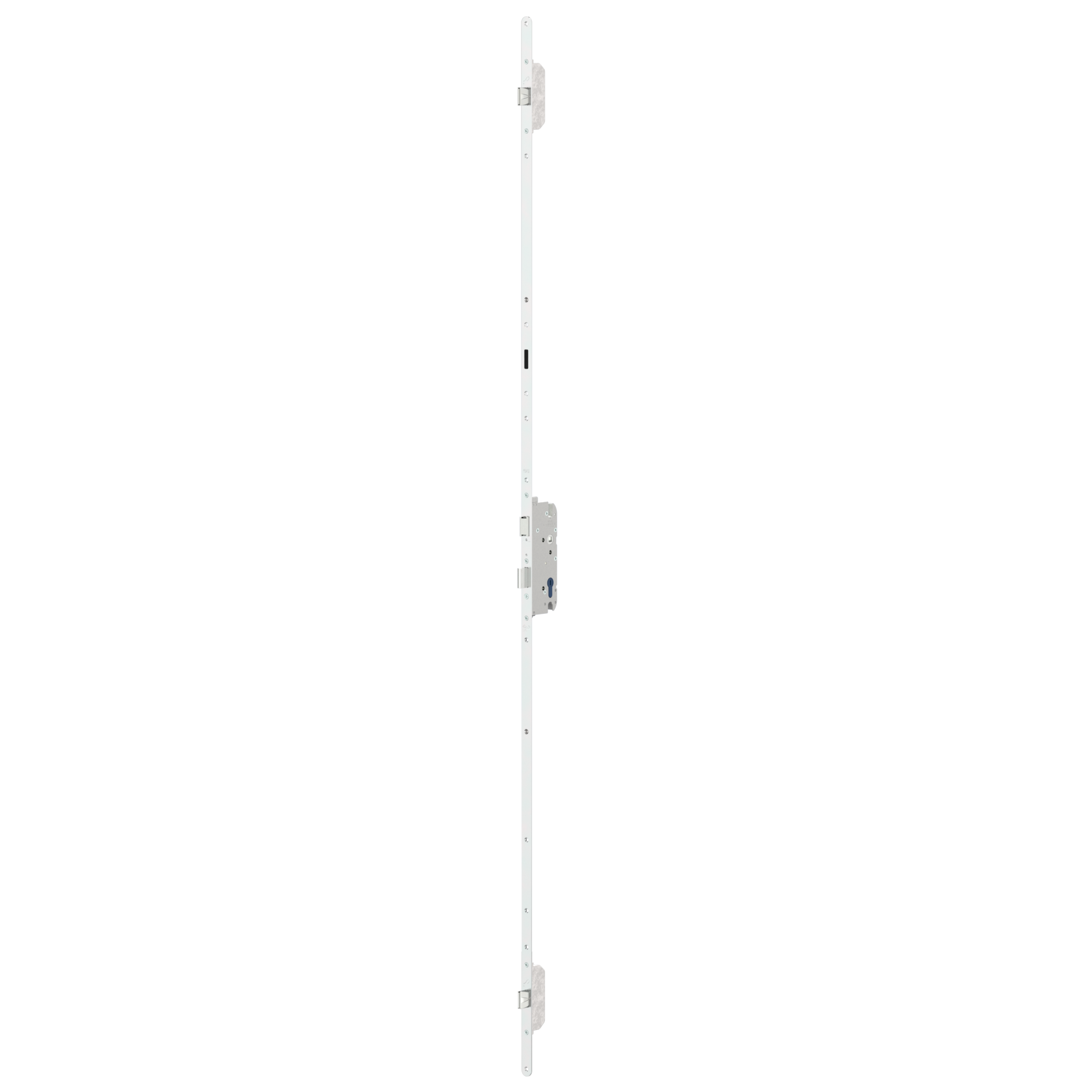

6-37517-01-0-1 | Multi-point lock | SecDZ MR2-55/72/8/20/vIS/1750/730/760/RK
Part No.6-37517-01-0-1
EAN4015596234605
No content available
Attributes
Backset
55 mm
Faceplate dimension (in mm)
20 x 2,5
Hole distance
72 mm
Locking type (material short text)
MR2
Interior square of follower
8 mm
Top locking position 1 (A1)
730 mm
Faceplate length
1.750 mm
Type of faceplate
Flachstulp
Position of safe-T-catch
300 mm
Locking system
manually locking
Marking notch
890 mm
SECURY Special features
For DIN frames
Cylinder hole-type
Profile cylinder
Safe-T-catch
Prepared for safe-T-catch
Faceplate end
Round
Locking type
From marking notch upwards and downwards respectively 1 MR bolts
Bottom locking position 1 (B1)
760 mm
