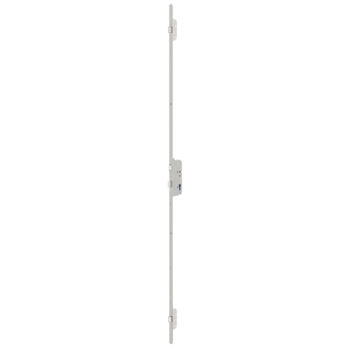

6-37517-14-0-8 | SecDZ MR2-65/72/9FH/20/1750/730/760/RK
Part No.6-37517-14-0-8
EAN 4015596476807
Area of application
Door technology
Area of application (specified)
Locks
Application system
SECURY V
Product type
Multi-point lock
Description of finish
Ground stainless steel
Gross weight
2.568 KG
Packing unit
2 EA
Minimum ordering unit
1 EA
1 Version found

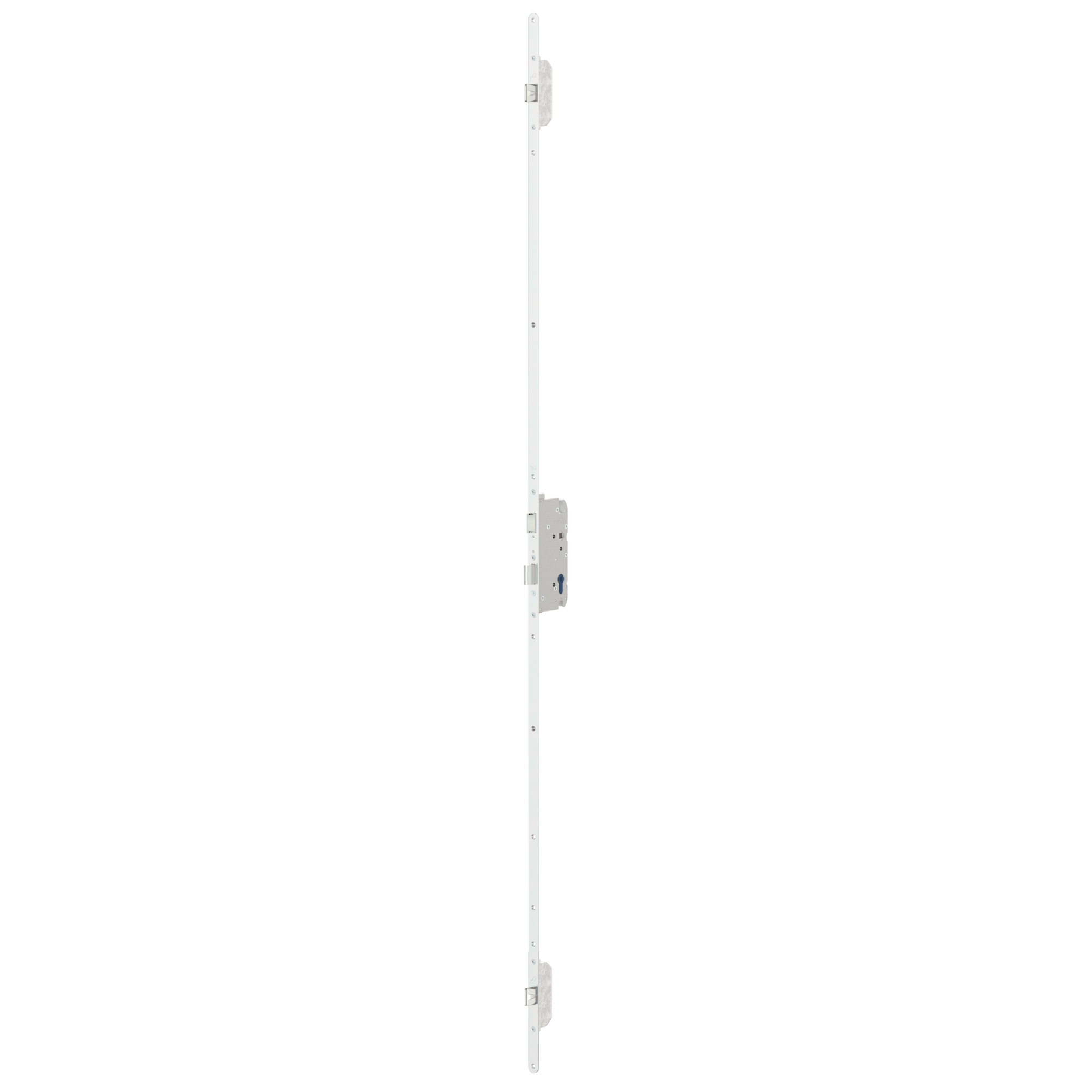

6-37517-14-0-1 | Multi-point lock | SecDZ MR2-65/72/9FH/20/1750/730/760/RK
Part No.6-37517-14-0-1
EAN4015596414601
No content available
Attributes
Backset
65 mm
Faceplate dimension (in mm)
20 x 2,5
Hole distance
72 mm
Locking type (material short text)
MR2
Interior square of follower
9 mm
Top locking position 1 (A1)
730 mm
Faceplate length
1.750 mm
Type of faceplate
Flachstulp
Locking system
manual-locking
Faceplate end
Round
Bottom locking position 1 (B1)
760 mm
Locking type
From marking notch upwards and downwards respectively 1 MR bolts
Marking notch
890 mm
Fire/smoke protection
door-leaf height – for fire-resistant doors
Version
for DIN frames
Cylinder hole-type
Profile cylinder
Opening direction of hinges
Left, Right, Left/right, Non-handed
