6-37563-05-0-8 | Sec-SH2-35/92/8/24x6/vIS/1750/730/760
Part No.6-37563-05-0-8
EAN 4015596432773
Area of application
Door technology
Area of application (specified)
Locks
Application system
SECURY V
Product type
Multi-point lock
Description of finish
Ground stainless steel
Gross weight
2.599 KG
Packing unit
2 EA
Minimum ordering unit
1 EA
1 Version found

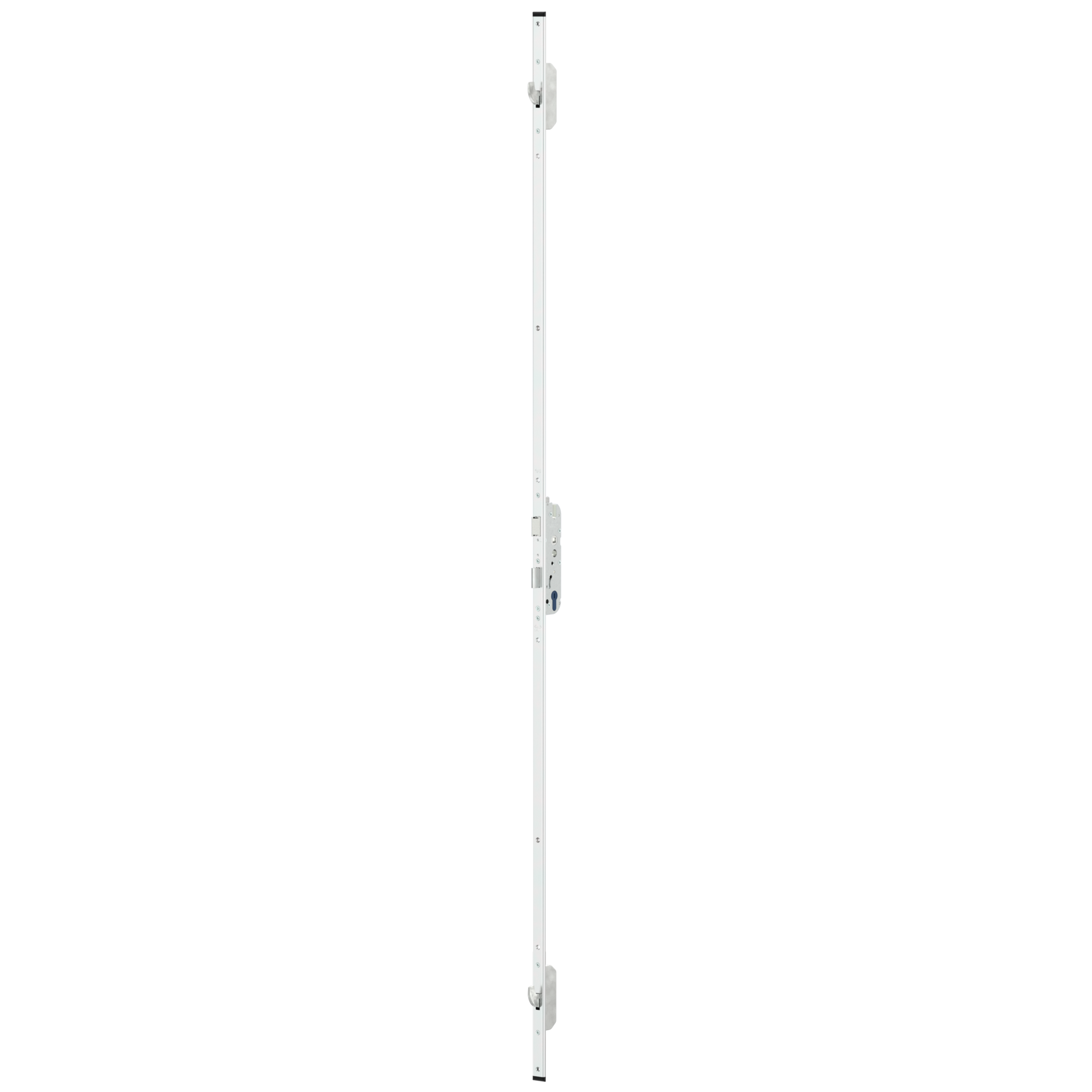

6-37563-05-0-1 | Multi-point lock | Sec-SH2-35/92/8/24x6/vIS/1750/730/760
Part No.6-37563-05-0-1
EAN4015596228550
No content available
Attributes
Backset
35 mm
Faceplate dimension (in mm)
24 x 6 x 6 x 2,5
Hole distance
92 mm
Locking type (material short text)
SH2
Interior square of follower
8 mm
Top locking position 1 (A1)
730 mm
Faceplate length
1.750 mm
Type of faceplate
U-Stulp
Locking system
manually locking
Suitable for security level
SKG
Marking notch
890 mm
Faceplate end
Square
Locking type
From marking notch upwards and downwards 1 SH bolts respectively
Bottom locking position 1 (B1)
760 mm
