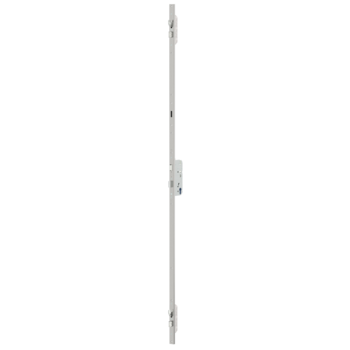

6-37564-19-0-8 | Sec-DR-65/92/10/30x10/vIS/1750/730/760
Part No.6-37564-19-0-8
EAN 4015596489364
1 Version found

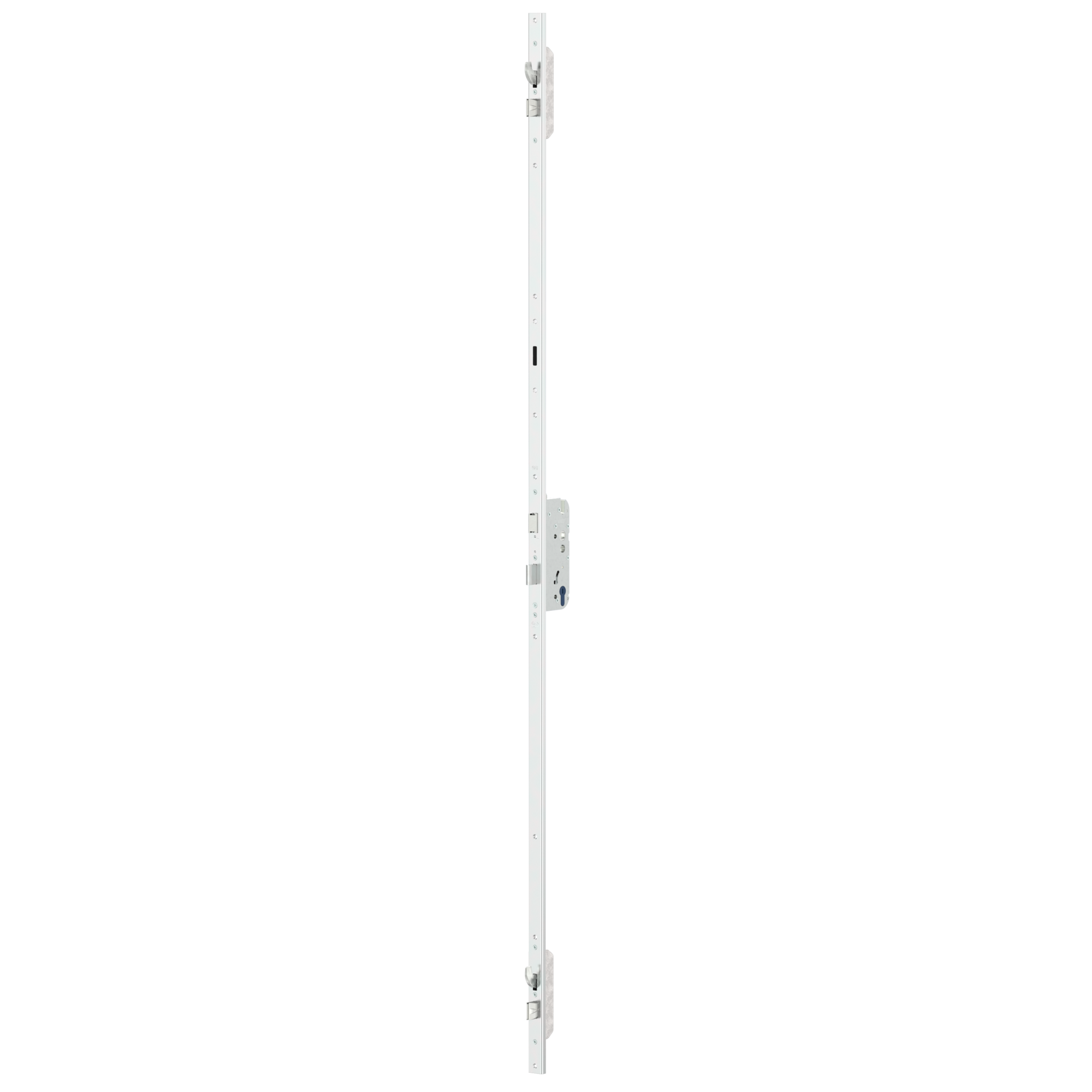

6-37564-19-0-1 | Multi-point lock | Sec-DR-65/92/10/30x10/vIS/1750/730/760
Part No.6-37564-19-0-1
EAN4015596278395
No content available
Attributes
Backset
65 mm
Faceplate dimension (in mm)
30 x 10 x 10 x 2,5
Hole distance
92 mm
Locking type (material short text)
DR
Interior square of follower
10 mm
Top locking position 1 (A1)
730 mm
Faceplate length
1.750 mm
Type of faceplate
U-Stulp
Position of safe-T-catch
300 mm
Locking system
manually locking
Number of additional locks
2
Marking notch
890 mm
Cylinder hole-type
Profile cylinder
Faceplate end
Square
Locking type
From marking notch upwards and downwards respectively 1 DR bolt.
Bottom locking position 1 (B1)
760 mm
