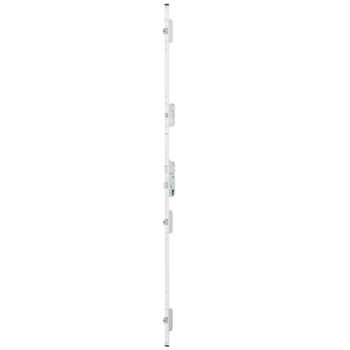

6-37565-03-0-1 | *SECA3-45/92/8/24x6/IS8/1750/730/250/760
Part No.6-37565-03-0-1
EAN 4015596327819
Area of application
Door technology
Area of application (specified)
Locks
Application system
Automatic 3
Product type
Multi-point lock
Description of finish
ferGUard*silver
Gross weight
3.319 KG
Packing unit
2 EA
Minimum ordering unit
1 EA
1 Version found

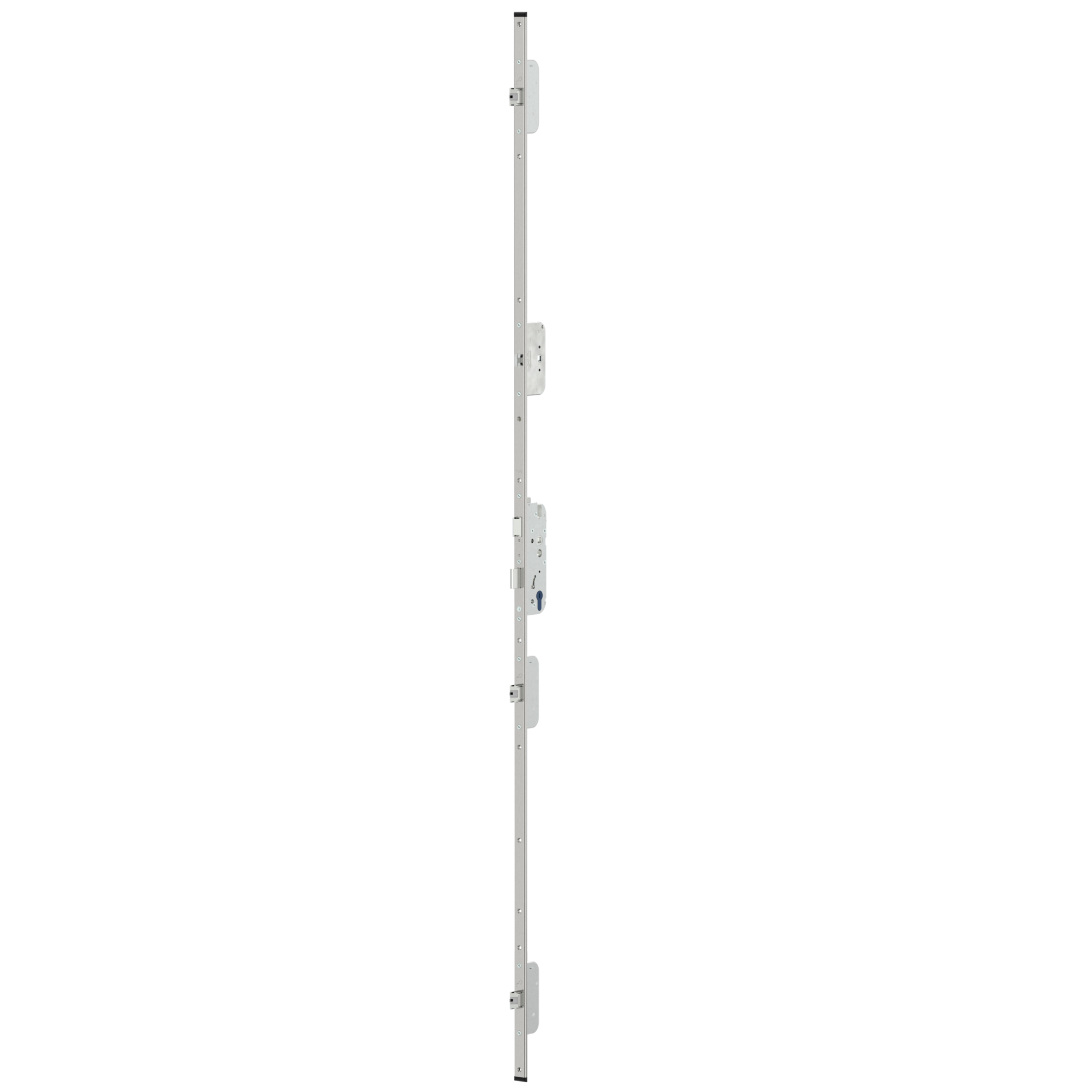

6-37565-03-0-8 | Multi-point lock | *SecA3-45/92/8/24x6/890/IS/1750/730/250
Part No.6-37565-03-0-8
EAN4015596208156
No content available
Attributes
Backset
45 mm
Faceplate dimension (in mm)
24 x 6 x 6 x 2,5
Hole distance
92 mm
Locking type (material short text)
sf3
Interior square of follower
8 mm
Top locking position 1 (A1)
730 mm
Faceplate length
1.750 mm
Type of faceplate
U-Stulp
Position of safe-T-catch
300 mm
Locking system
self-locking
A-opener
optional
Marking notch
890 mm
Cylinder hole-type
Profile cylinder
Safe-T-catch
With safe-t-catch
Faceplate end
Square
Locking type
From marking notch upwards 1 Automatic latchbolt and downwards 2 Automatic latch...
Show more
From marking notch upwards 1 Automatic latchbolt and downwards 2 Automatic latchbolts.
Show less
Bottom locking position 1 (B1)
250 mm
Bottom locking position 2 (B2)
760 mm
Projection safe-T-catch
8 mm
