6-37583-03-0-1 | *Sec-MR2-40/92/8/24x6/890/IS/1750/730
Part No.6-37583-03-0-1
EAN 4015596282224
Area of application
Door technology
Area of application (specified)
Locks
Application system
SECURY V
Product type
Multi-point lock
Description of finish
ferGUard*silver
Gross weight
2.45 KG
Packing unit
2 EA
Minimum ordering unit
1 EA
1 Version found

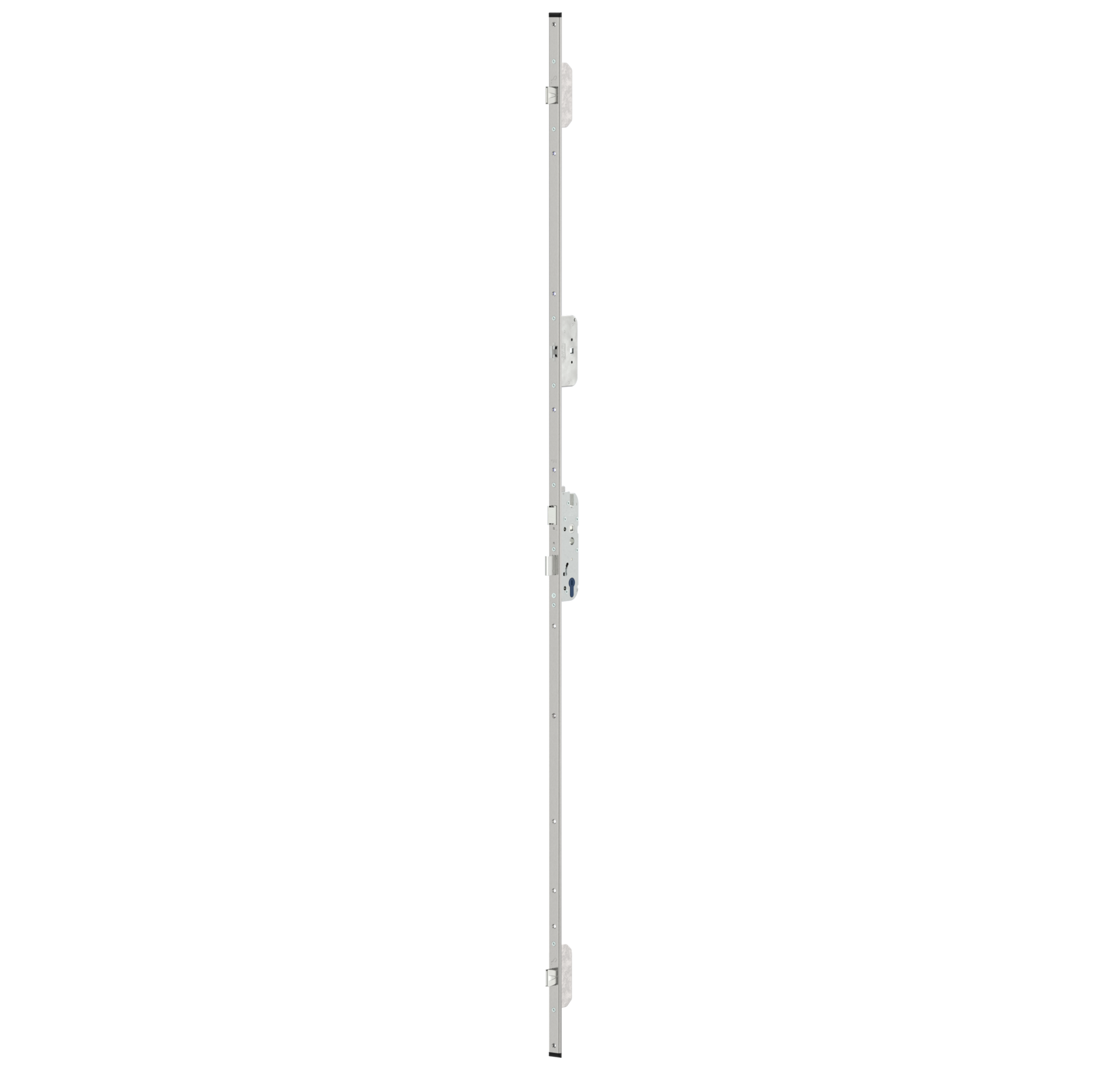

6-37583-03-0-8 | Multi-point lock | *Sec-MR2-40/92/8/24x6/890/IS/1750/730
Part No.6-37583-03-0-8
EAN4015596334428
No content available
Attributes
Backset
40 mm
Faceplate dimension (in mm)
24 x 6 x 6 x 2,5
Hole distance
92 mm
Locking type (material short text)
MR2
Interior square of follower
8 mm
Top locking position 1 (A1)
730 mm
Faceplate length
1.750 mm
Type of faceplate
U-Stulp
Position of safe-T-catch
300 mm
Locking system
manually locking
Marking notch
890 mm
Cylinder hole-type
Profile cylinder
Safe-T-catch
With safe-t-catch
Faceplate end
Square
Locking type
From marking notch upwards and downwards respectively 1 MR bolts
Bottom locking position 1 (B1)
760 mm
Projection safe-T-catch
8 mm
