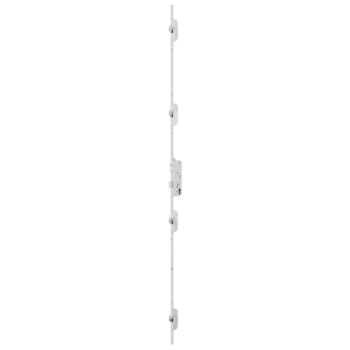

6-38403-10-0-1 | *Sec-SH4-55/92/10/16/1750/300/730/250/76
Part No.6-38403-10-0-1
EAN 4015596307576
Area of application
Door technology
Area of application (specified)
Locks
Application system
SECURY V
Product type
Multi-point lock
Description of finish
ferGUard*silver
Gross weight
2.806 KG
Packing unit
5 EA
Minimum ordering unit
1 EA
No content available
Attributes
Backset
55 mm
Faceplate dimension (in mm)
16 x 2,5
Hole distance
92 mm
Locking type (material short text)
SH4
Interior square of follower
10 mm
Top locking position 1 (A1)
300 mm
Top locking position 2 (A2)
730 mm
Faceplate length
1.750 mm
Type of faceplate
Flachstulp
Locking system
manually locking
Marking notch
890 mm
Cylinder hole-type
Profile cylinder
Faceplate end
Square
Locking type
From marking notch upwards and downwards 2 SH bolts respectively
Bottom locking position 1 (B1)
250 mm
Bottom locking position 2 (B2)
760 mm
