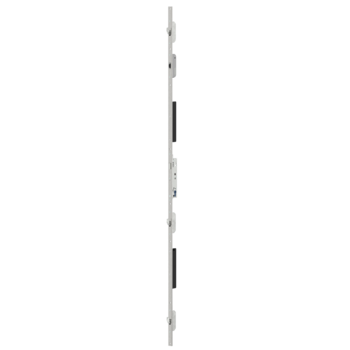

K-19654-02-R-8 | *SEC-ePOWER PT1-SH3-35/92/24x6x2/1750
Part No.K-19654-02-R-8
EAN 4015596505965
Area of application
Door technology
Area of application (specified)
Locks
Application system
SECURY ePOWER Panic
Product type
Multi-point lock
Description of finish
Ground stainless steel
Gross weight
3.656 KG
Packing unit
1 EA
Minimum ordering unit
1 EA
1 Version found

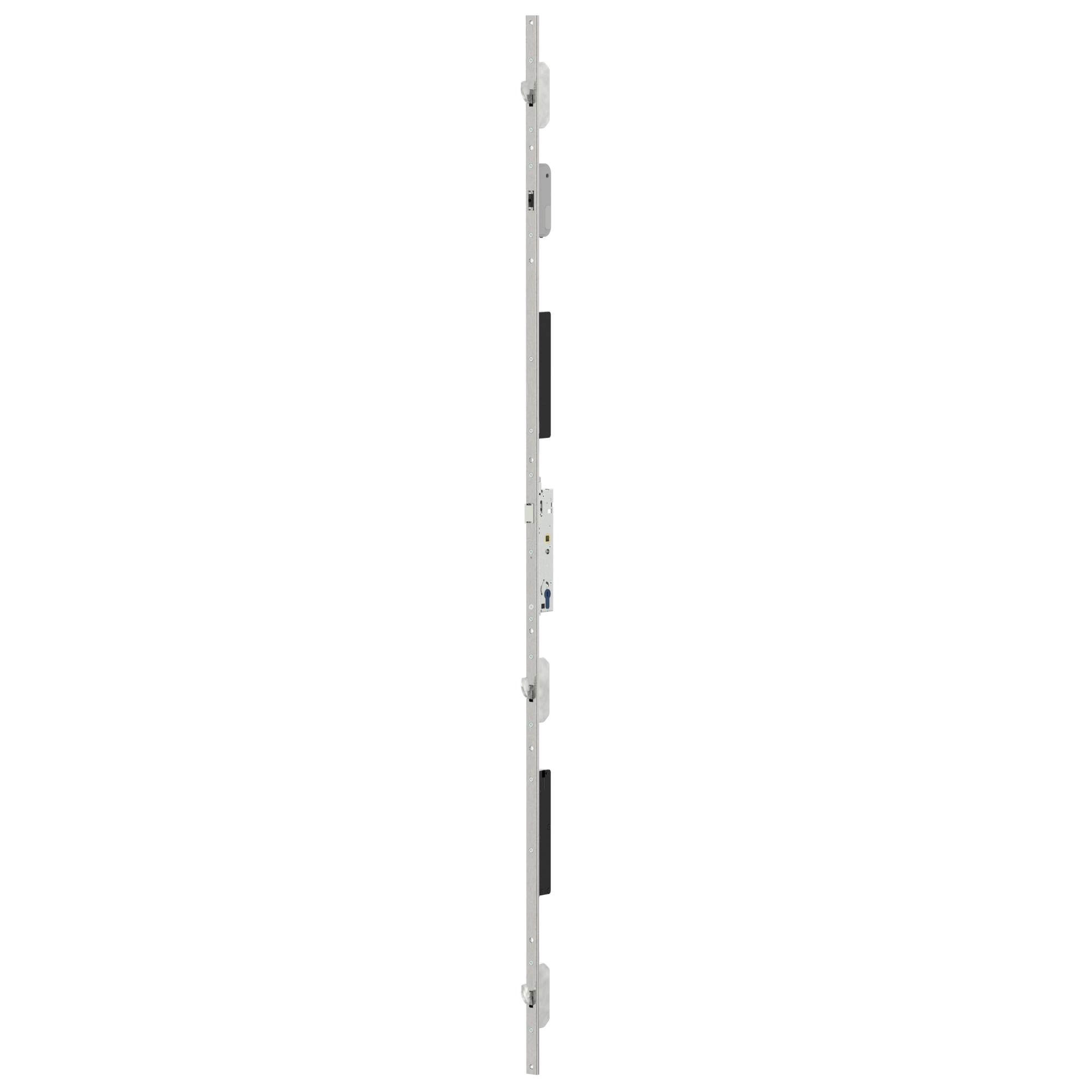

K-19654-02-L-8 | Multi-point lock | *SEC-ePOWER PT1-SH3-35/92/24x6x2/1750
Part No.K-19654-02-L-8
EAN4015596502674
No content available
Attributes
Backset
35 mm
Faceplate dimension (in mm)
24 x 6 x 6 x 2
Hole distance
92 mm
Locking type (material short text)
SH3
Interior square of follower
9 mm
Top locking position 1 (A1)
730 mm
Faceplate length
1.750 mm
Type of faceplate
U-Stulp
Locking system
manually locking
Fire/smoke protection
door-leaf height – for fire-resistant doors
Number of leaves
Single-leaf
Marking notch
890 mm
Panic function
Daytime release
SECURY Special features
with signalling device
Cylinder hole-type
Profile cylinder
Faceplate end
Square
Locking type
From marking notch upwards 1 SH bolt and downwards 2 SH bolts
Bottom locking position 1 (B1)
250 mm
Bottom locking position 2 (B2)
760 mm
Opening direction of hinges
Outward-opening
