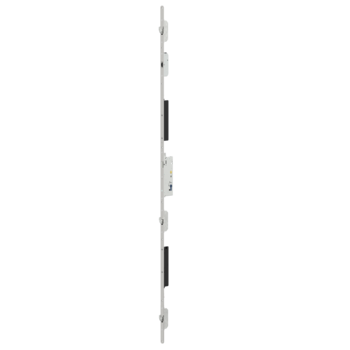

K-19902-10-R-8_kd30

K-19902-10-R-8 | *SEC-ePOWER H-SH3-65/72/20x3/1750/RK

Part No.K-19902-10-R-8
EAN 4015596556806
Product description Technical data Downloads
Area of application
Door technology
Area of application (specified)
Locks
Product type
Multi-point lock
Description of finish
Ground stainless steel
Gross weight
3.287 KG
Packing unit
1 EA
Minimum ordering unit
1 EA
Login

Please enter your login credentials to view prices or to order items

15 Variants found
K-19902-01-L-8_kd30
K-19902-01-L-8 | Multi-point lock | *SEC-ePOWER H-SH3-35/92/24x3/1750
Part No.K-19902-01-L-8
EAN4015596556516
To the product
K-19902-01-R-8_kd30
K-19902-01-R-8 | Multi-point lock | *SEC-ePOWER H-SH3-35/92/24x3/1750
Part No.K-19902-01-R-8
EAN4015596556523
To the product
K-19902-02-L-8_kd30
K-19902-02-L-8 | Multi-point lock | *SEC-ePOWER H-SH3-35/92/24x6x2/1750
Part No.K-19902-02-L-8
EAN4015596556530
To the product
K-19902-02-R-8_kd30
K-19902-02-R-8 | Multi-point lock | *SEC-ePOWER H-SH3-35/92/24x6x2/1750
Part No.K-19902-02-R-8
EAN4015596556547
To the product
K-19902-03-L-8_kd30
K-19902-03-L-8 | Multi-point lock | *SEC-ePOWER H-SH3-45/92/24x3/1750
Part No.K-19902-03-L-8
EAN4015596556554
To the product
K-19902-03-R-8_kd30
K-19902-03-R-8 | Multi-point lock | *SEC-ePOWER H-SH3-45/92/24x3/1750
Part No.K-19902-03-R-8
EAN4015596556561
To the product
K-19902-04-L-8_kd30
K-19902-04-L-8 | Multi-point lock | *SEC-ePOWER H-SH3-45/92/24x6x2/1750
Part No.K-19902-04-L-8
EAN4015596556578
To the product
K-19902-05-L-8_kd30
K-19902-04-R-8 | Multi-point lock | *SEC-ePOWER H-SH3-45/92/24x6x2/1750
Part No.K-19902-04-R-8
EAN4015596556660
To the product
K-19902-05-L-8_kd30
K-19902-05-L-8 | Multi-point lock | *SEC-ePOWER H-SH3-65/92/20x3/1750/RK
Part No.K-19902-05-L-8
EAN4015596556691
To the product
K-19902-05-R-8_kd30
K-19902-05-R-8 | Multi-point lock | *SEC-ePOWER H-SH3-65/92/20x3/1750/RK
Part No.K-19902-05-R-8
EAN4015596556707
To the product
K-19902-09-L-8_kd30
K-19902-09-L-8 | Multi-point lock | *SEC-ePOWER H-SH3-55/72/20x3/1750/RK
Part No.K-19902-09-L-8
EAN4015596556776
To the product
K-19902-09-R-8_kd30
K-19902-09-R-8 | Multi-point lock | *SEC-ePOWER H-SH3-55/72/20x3/1750/RK
Part No.K-19902-09-R-8
EAN4015596556783
To the product
K-19902-10-L-8_kd30
K-19902-10-L-8 | Multi-point lock | *SEC-ePOWER H-SH3-65/72/20x3/1750/RK
Part No.K-19902-10-L-8
EAN4015596556790
To the product
K-19902-12-L-8_kd30
K-19902-12-L-8 | Multi-point lock | *SEC-ePOWER H-SH3-40/92/24x6x2/1750
Part No.K-19902-12-L-8
EAN4015596556837
To the product
K-19902-12-R-8_kd30
K-19902-12-R-8 | Multi-point lock | *SEC-ePOWER H-SH3-40/92/24x6x2/1750
Part No.K-19902-12-R-8
EAN4015596556844
To the product
View all variants
No content available

Attributes

Backset
65 mm
Faceplate dimension (in mm)
20 x 3
Hole distance
72 mm
Locking type (material short text)
SH3
Interior square of follower
10 mm
Top locking position 1 (A1)
730 mm
Faceplate length
1.750 mm
Type of faceplate
Flachstulp
Locking system
manually locking
Number of leaves
Single-leaf
Marking notch
890 mm
SECURY Special features
with signalling device
Cylinder hole-type
Profile cylinder
Faceplate end
Round
Locking type
From marking notch upwards 1 SH bolt and downwards 2 SH bolts
Bottom locking position 1 (B1)
250 mm
Bottom locking position 2 (B2)
760 mm

Catalogue data in PDF format

K-19902-10-R-x_kd01.pdf
PDF (1MB)
Deutsch, Englisch
