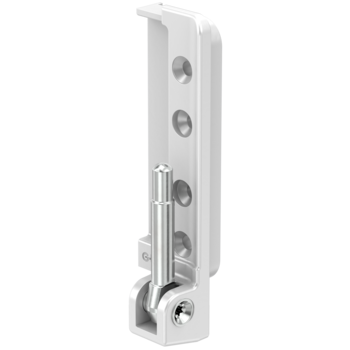

6-35932-20-R-7 | *Ecklagerbock UNI-JET M8/12
Part No.6-35932-20-R-7
EAN 4015596210180
Area of application
Window technology
Area of application (specified)
Tilt&Turn, Turn-Only, Tilt-First, Tilt-Only
Application system
UNI-JET M8/12
Product type
Pivot-rest
Description of finish
White
Gross weight
0.171 KG
Packing unit
30 EA
Minimum ordering unit
30 EA
3 Variants found
6-35932-20-L-1 | Pivot-rest | *Ecklagerbock UNI-JET M8/12
Part No.6-35932-20-L-1
EAN4015596210142
6-35932-20-L-7 | Pivot-rest | *Ecklagerbock UNI-JET M8/12
Part No.6-35932-20-L-7
EAN4015596210159

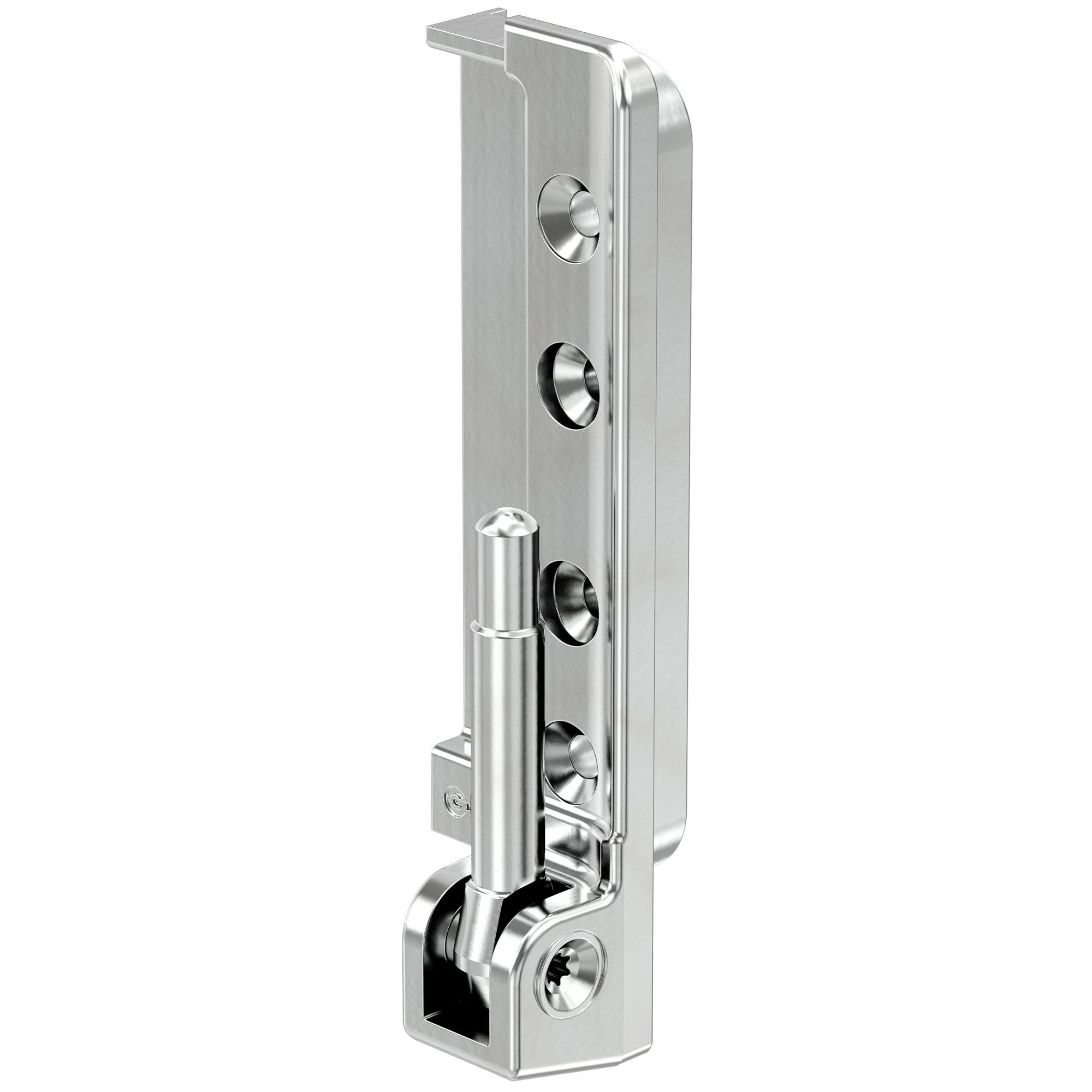

6-35932-20-R-1 | Pivot-rest | *Ecklagerbock UNI-JET M8/12
Part No.6-35932-20-R-1
EAN4015596210173
No content available
Attributes
Clearance
12 mm
Axis
9 mm
Diameter of positioning pin
7,9 mm
Length of positioning pin
10 mm
Installation
Surface-mounted
Axis 2
13 mm
Opening direction of hinges
Right
Profile material
Holz
System
12/20-9, 12/20-13
Overlap width
20 mm
