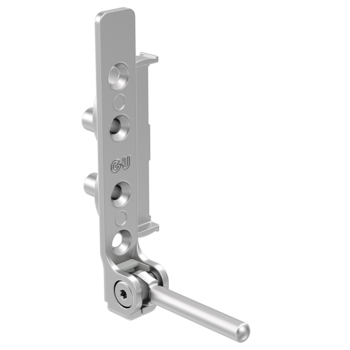

6-36876-84-L-1 | CORNER BEARING UNI-JET M6/12
Part No.6-36876-84-L-1
EAN 4015596191083
Area of application
Window technology
Area of application (specified)
Tilt&Turn, Turn-Only, Tilt-First
Application system
UNI-JET M6/12
Product type
Pivot-rest
Description of finish
ferGUard*silver
Gross weight
0.066 KG
Packing unit
5 EA
Minimum ordering unit
1 EA
1 Version found

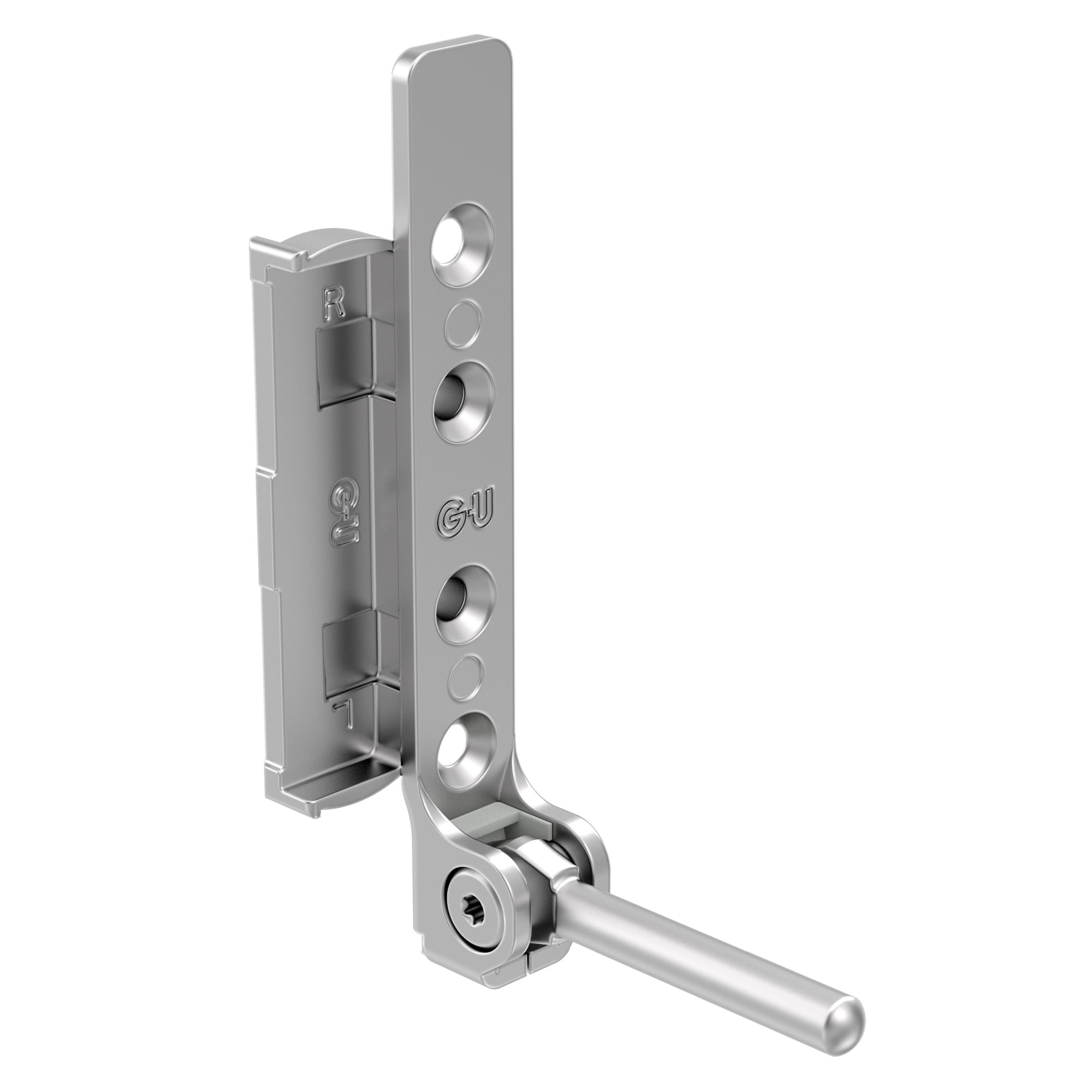

6-36876-84-R-1 | Pivot-rest | CORNER BEARING UNI-JET M6/12
Part No.6-36876-84-R-1
EAN4015596191090
No content available
Attributes
Diameter of drill-hole part
33,9 mm
Axis
9 mm
Max. sash weight
100 kg
Clearance
12 mm
Diameter of positioning pin
8 mm
Length of positioning pin
5 mm
Opening direction of hinges
Left
Axis 2
13 mm
Profile material
Holz
Overlap width
18 mm
