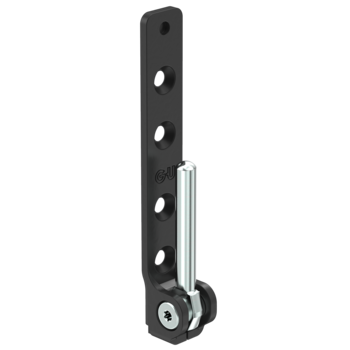

6-36881-03-0-6 | PIVOT REST+DRILLING PIN Ø3X2,5 EV1
Part No.6-36881-03-0-6
EAN 4015596313324
Area of application
Window technology
Area of application (specified)
Tilt&Turn, Turn-Only, Tilt-First
Application system
UNI-JET D
Product type
Pivot-rest
Description of finish
Onyx matt
Gross weight
0.114 KG
Packing unit
100 EA
Minimum ordering unit
1 EA
3 Variants found
6-36881-03-0-1 | Pivot-rest | Pivot-rest UNI-JET D
Part No.6-36881-03-0-1
EAN4015596188144
6-36881-03-0-5 | Pivot-rest | Pivot-rest UNI-JET D
Part No.6-36881-03-0-5
EAN4015596196477
6-36881-03-0-7 | Pivot-rest | Pivot-rest UNI-JET D
Part No.6-36881-03-0-7
EAN4015596196484
No content available
Attributes
Max. sash weight
100 kg
Clearance
12 mm
Axis
9 mm
Diameter of positioning pin
3 mm
Length of positioning pin
2,5 mm
Axis 2
13 mm
Profile material
Aluminium, PVC, Holz
