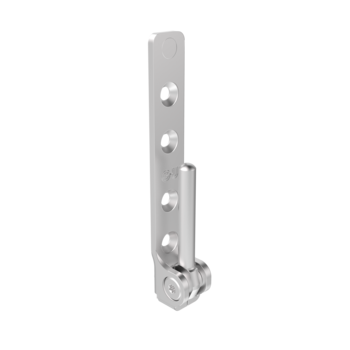

6-36882-05-0-1 | CORNER BEARING UNI-JET D L5/5
Part No.6-36882-05-0-1
EAN 4015596190116
Area of application
Window technology
Area of application (specified)
Tilt&Turn, Tilt-First, Turn-Only
Application system
UNI-JET D
Product type
Pivot-rest
Description of finish
ferGUard*silver
Gross weight
0.045 KG
Packing unit
100 EA
Minimum ordering unit
1 EA
2 Variants found
6-36882-05-0-5 | Pivot-rest | CORNER BEARING UNI-JET D L5/5
Part No.6-36882-05-0-5
EAN4015596193179
6-36882-05-0-7 | Pivot-rest | Pivot-rest D Ø6x5
Part No.6-36882-05-0-7
EAN4015596193186
No content available
Attributes
Max. sash weight
100 kg
Clearance
12 mm
Axis
9 mm
Diameter of positioning pin
6 mm
Length of positioning pin
5 mm
Axis 2
13 mm
Profile material
Aluminium, PVC, Holz
