6-36882-10-0-5 | CORNER BEARING UNI-JET D L10/10
Part No.6-36882-10-0-5
EAN 4015596193193
Area of application
Window technology
Area of application (specified)
Tilt&Turn, Tilt-First, Turn-Only
Application system
UNI-JET D
Product type
Pivot-rest
Description of finish
Brown
Gross weight
0.047 KG
Packing unit
100 EA
Minimum ordering unit
1 EA
2 Variants found
6-36882-10-0-1 | Pivot-rest | Pivot-rest D Ø6x10
Part No.6-36882-10-0-1
EAN4015596190147

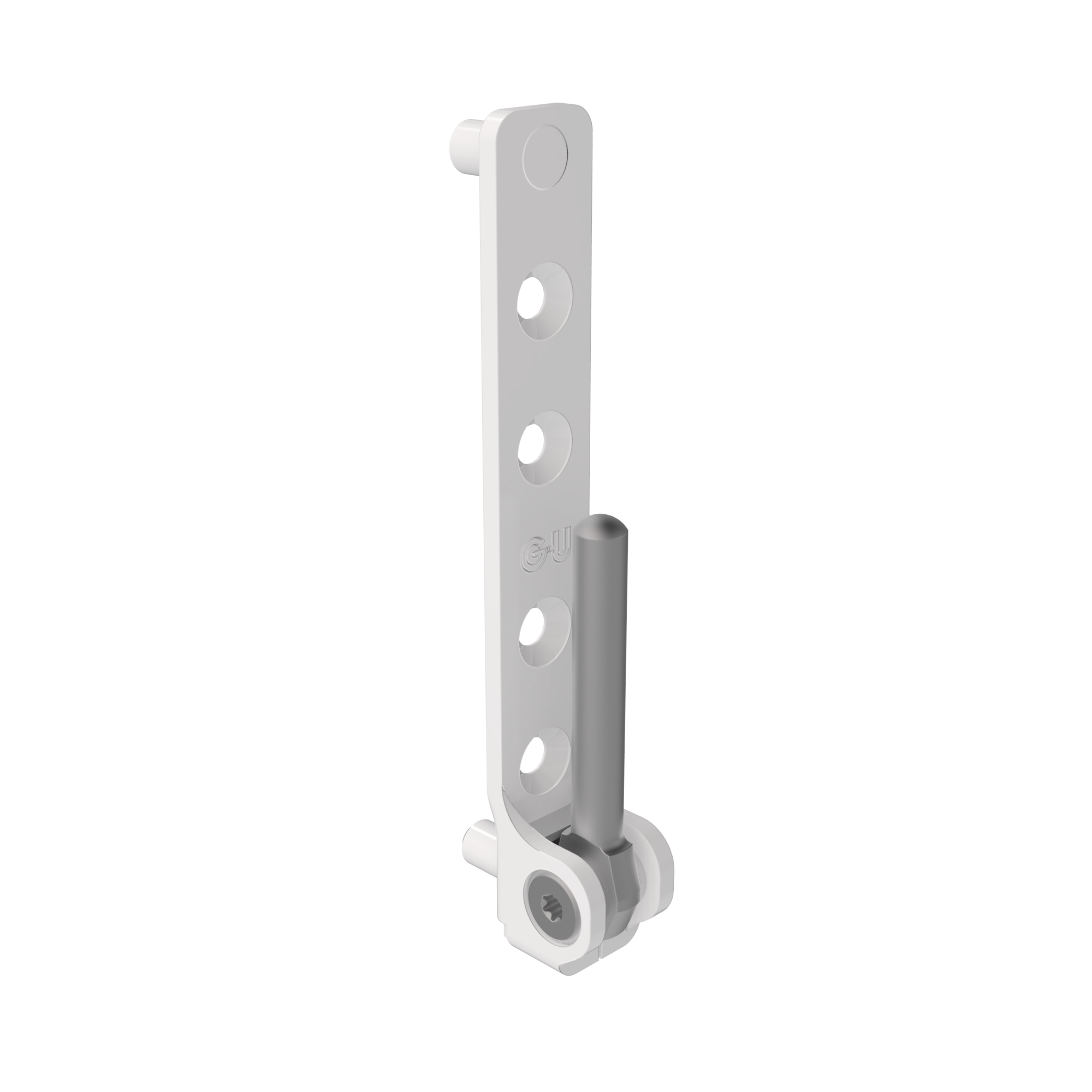

6-36882-10-0-7 | Pivot-rest | CORNER BEARING UNI-JET D L10/10
Part No.6-36882-10-0-7
EAN4015596193209
No content available
Attributes
Max. sash weight
100 kg
Clearance
12 mm
Axis
9 mm
Diameter of positioning pin
6 mm
Length of positioning pin
10 mm
Axis 2
13 mm
Profile material
Aluminium, PVC, Holz
