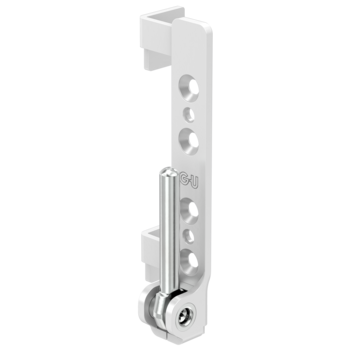

6-37531-20-R-7 | Corner bearing UNI JET S
Part No.6-37531-20-R-7
EAN 4015596198259
Area of application
Window technology
Area of application (specified)
Tilt&Turn, Tilt-First, Turn-Only
Application system
UNI-JET S
Product type
Pivot-rest
Description of finish
White
Gross weight
55 G
Packing unit
30 EA
Minimum ordering unit
30 EA
3 Variants found
6-37531-20-L-1 | Pivot-rest | Pivot rest UNI JET S
Part No.6-37531-20-L-1
EAN4015596198228
6-37531-20-L-7 | Pivot-rest | Corner bearing UNI JET S
Part No.6-37531-20-L-7
EAN4015596198235
6-37531-20-R-1 | Pivot-rest | Pivot rest UNI JET S
Part No.6-37531-20-R-1
EAN4015596198242
No content available
Attributes
Max. sash weight
130 kg
Clearance
12 mm
Axis
9 mm
Axis 2
13 mm
Opening direction of hinges
Right
Profile material
Holz
System
12/20-9, 12/20-13
Overlap width
20 mm
