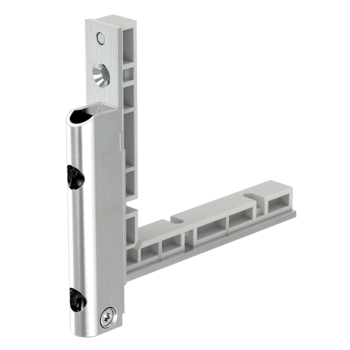

6-36120-18-L-1 | rebate corner-hinge M6 12/18-13 groove L
Part No.6-36120-18-L-1
EAN 4015596188670
Area of application
Window technology
Area of application (specified)
Tilt&Turn, Turn-Only, Tilt-First
Application system
UNI-JET M6/4, UNI-JET M6/12
Product type
Rebate corner-hinge
Description of finish
ferGUard*silver
Gross weight
0.154 KG
Packing unit
10 EA
Minimum ordering unit
1 EA
3 Variants found
6-36120-18-L-7 | Rebate corner-hinge | REB.CORNER HIN.N UNI-JET M6 13mm W.O.BR.
Part No.6-36120-18-L-7
EAN4015596196354
6-36120-18-R-1 | Rebate corner-hinge | rebate corner-hinge M6 12/18-13 groove R
Part No.6-36120-18-R-1
EAN4015596188687
6-36120-18-R-7 | Rebate corner-hinge | REB.CORNER HIN.N UNI-JET M6 13mm W.O.BR.
Part No.6-36120-18-R-7
EAN4015596196415
No content available
Attributes
Furnishing
Circumferential
Clearance
4 mm
Clearance 2
12
Height adjustment
Lower 2 mm, Lift 2 mm
Max. sash weight
130 kg
Axis
13 mm
Opening direction of hinges
Left
Profile material
Holz
System
4/18-13, 12/18-13
Overlap width
18 mm
