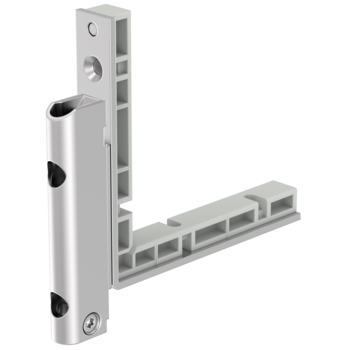

6-36121-18-L-1 | REB.CORNER HINGE N UNI-JET M6 9mm W. BR.
Part No.6-36121-18-L-1
EAN 4015596200488
Area of application
Window technology
Area of application (specified)
Tilt&Turn, Turn-Only, Tilt-First
Application system
UNI-JET M6/4, UNI-JET M6/12
Product type
Rebate corner-hinge
Description of finish
ferGUard*silver
Gross weight
0.15 KG
Packing unit
10 EA
Minimum ordering unit
1 EA
1 Version found

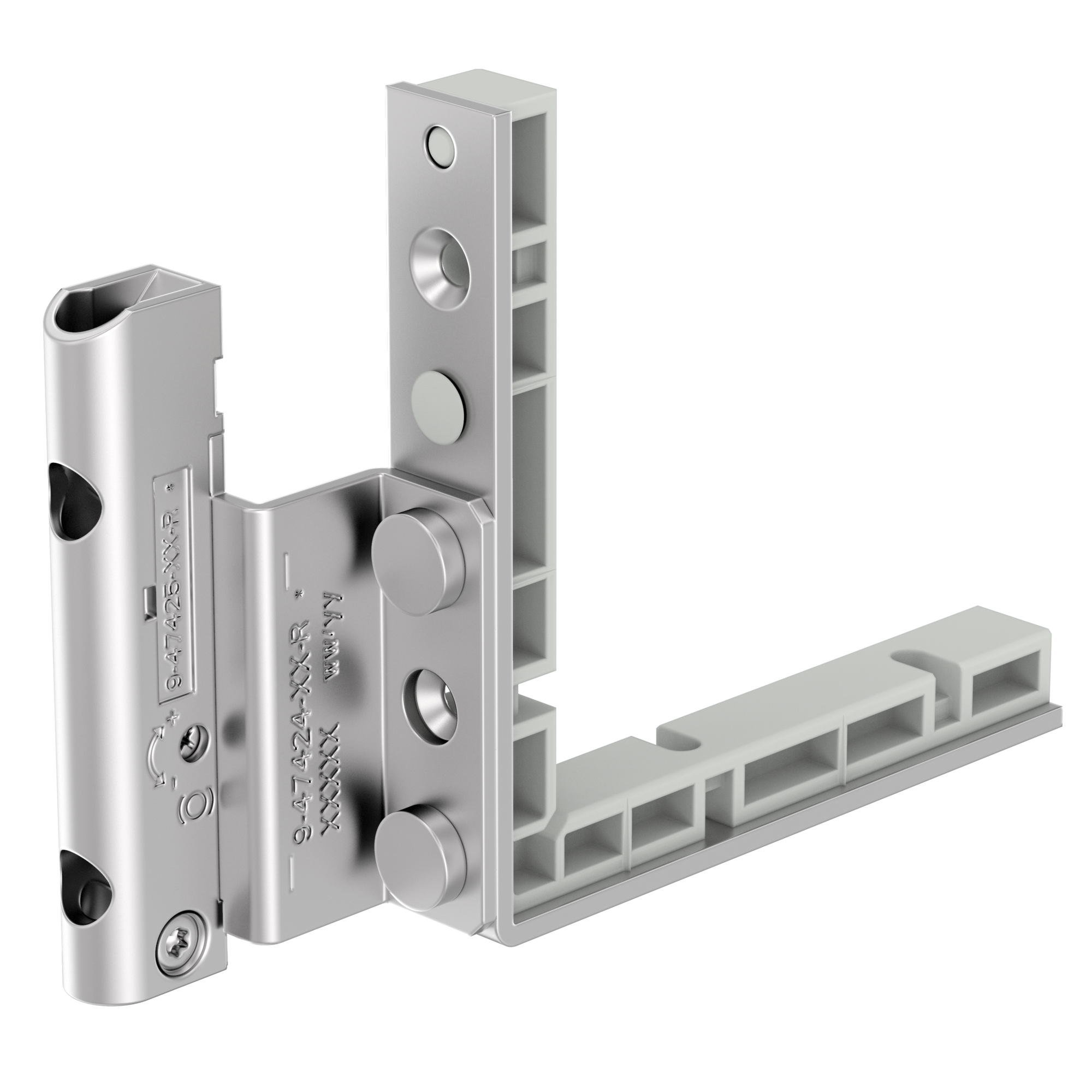

6-36121-18-R-1 | Rebate corner-hinge | REB.CORNER HINGE N UNI-JET M6 9mm W. BR.
Part No.6-36121-18-R-1
EAN4015596200495
No content available
Attributes
Furnishing
Circumferential
Clearance
4 mm
Clearance 2
12
Height adjustment
Lower 2 mm, Lift 2 mm
Max. sash weight
130 kg
Axis
9 mm
Opening direction of hinges
Left
Profile material
Holz
System
4/18-9, 12/18-9
Overlap width
18 mm
