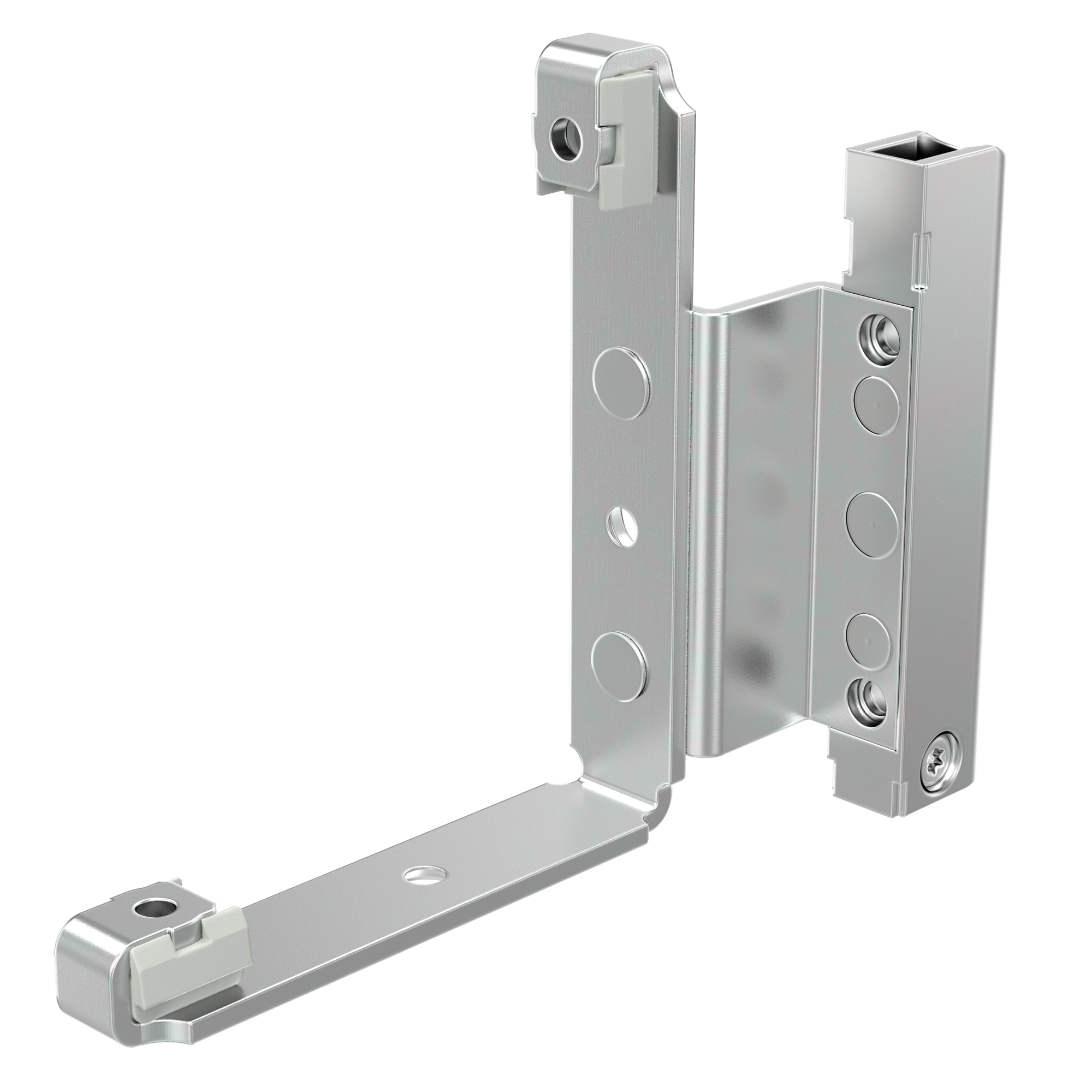

6-36138-18-R-1 | Corner rebate hinge UNI-JET D, Gr.9
Part No.6-36138-18-R-1
EAN 4015596189424
Area of application
Window technology
Area of application (specified)
Tilt&Turn, Turn-Only, Tilt-First
Application system
UNI-JET S, UNI-JET D
Product type
Rebate corner-hinge
Description of finish
ferGUard*silver
Gross weight
0.15 KG
Packing unit
10 EA
Minimum ordering unit
1 EA
1 Version found
6-36138-18-L-1 | Rebate corner-hinge | Corner rebate hinge UNI-JET D, Gr.9
Part No.6-36138-18-L-1
EAN4015596189394
No content available
Attributes
Furnishing
Circumferential
Clearance
12 mm
Height adjustment
Lower 2 mm, Lift 2 mm
Max. sash weight
150 kg
Axis
9 mm
Opening direction of hinges
Right
Profile material
PVC, Holz
System
12/18-9
Overlap width
18 mm
