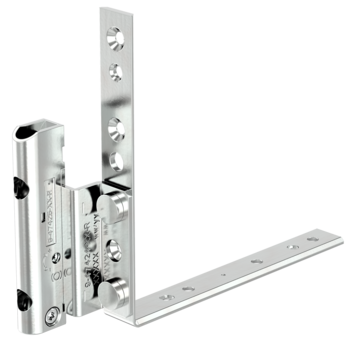

6-36853-15-R-1 | REB.CORNER HING UNI-JET M6 9/13mm W. BR.
Part No.6-36853-15-R-1
EAN 4015596210326
Area of application
Window technology
Area of application (specified)
Tilt&Turn, Turn-Only, Tilt-First
Application system
UNI-JET M6/4
Product type
Rebate corner-hinge
Description of finish
ferGUard*silver
Gross weight
0.148 KG
Packing unit
10 EA
Minimum ordering unit
1 EA
1 Version found

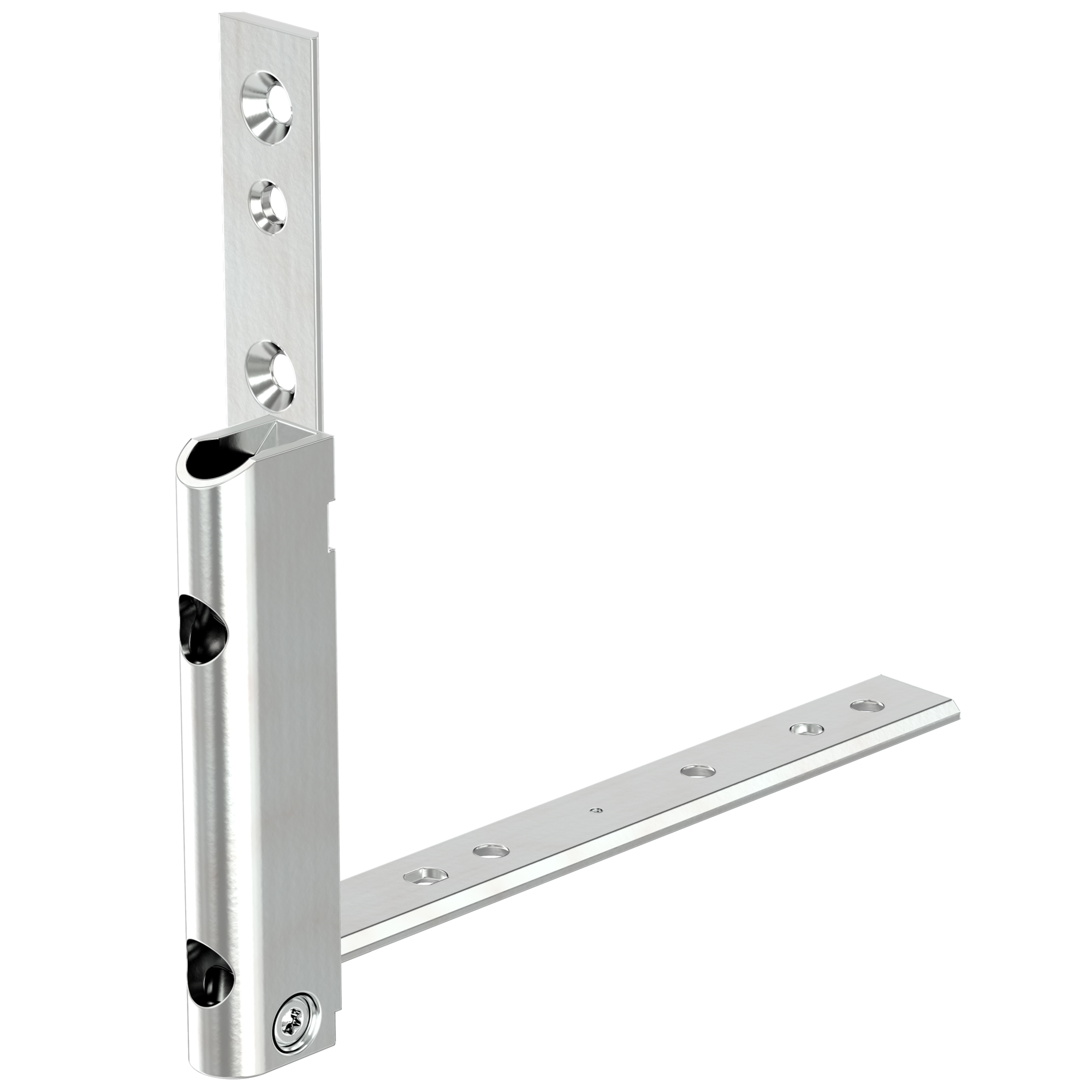

6-36853-15-L-1 | Rebate corner-hinge | REB.CORNER HING UNI-JET M6 9/13mm W. BR.
Part No.6-36853-15-L-1
EAN4015596210319
No content available
Attributes
Furnishing
Without
Clearance
4 mm
Height adjustment
Lower 2 mm, Lift 2 mm
Max. sash weight
130 kg
Axis
8 mm
Opening direction of hinges
Right
Profile material
Holz
System
4/15-8
Overlap width
15 mm
