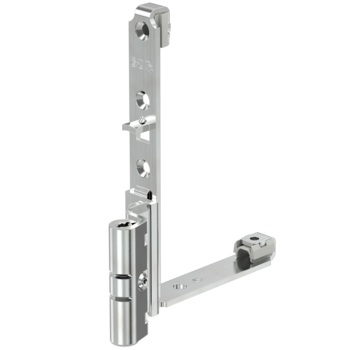

6-37455-18-L-1 | Rebate corner-hinge UNI-JET D/Alu 18Ü 9
Part No.6-37455-18-L-1
EAN 4015596215598
Area of application
Window technology
Area of application (specified)
Tilt&Turn, Turn-Only, Tilt-First
Application system
UNI-JET D, UNI-JET S
Product type
Rebate corner-hinge
Description of finish
ferGUard*silver
Gross weight
0.144 KG
Packing unit
2 EA
Minimum ordering unit
1 EA
1 Version found

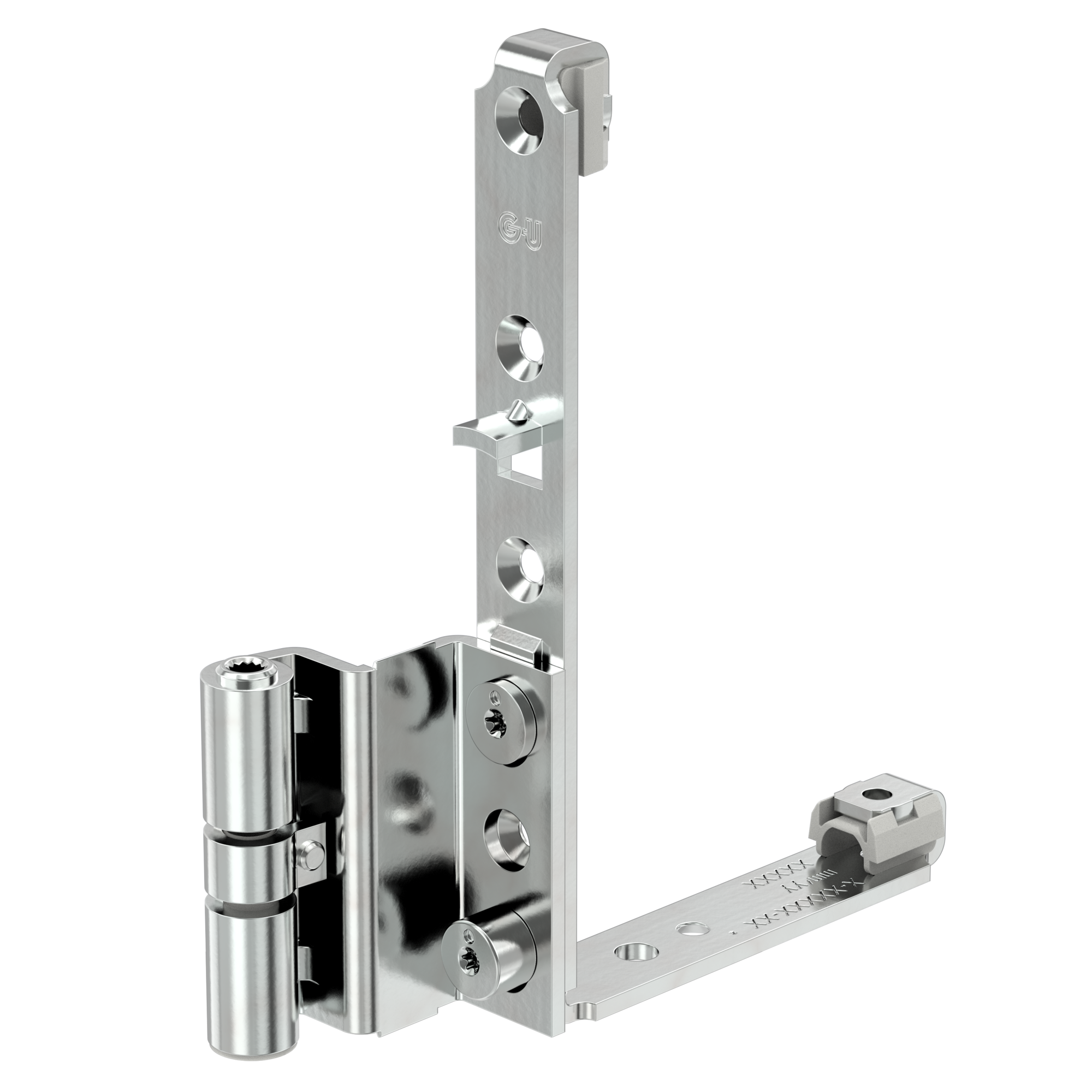

6-37455-18-R-1 | Rebate corner-hinge | Rebate corner-hinge UNI-JET D/Alu 18Ü 9
Part No.6-37455-18-R-1
EAN4015596215604
No content available
Attributes
Furnishing
Circumferential
Clearance
12 mm
Height adjustment
Lower 2 mm, Lift 2 mm
Max. sash weight
130 kg
Axis
9 mm
Opening direction of hinges
Left
Profile material
Aluminium, Holz, PVC
System
12/18-9
Overlap width
18 mm
