K-21021-00-0-7 | ELTRAL S 230
Part No.K-21021-00-0-7
EAN 4015596885012
Area of application
Window technology
Area of application (specified)
Tilt-Only, Top-Hung, Fanlight
Application system
ELTRAL S230
Product type
Spindle drive
Description of finish
White
Gross weight
1.013 KG
Packing unit
1 EA
Minimum ordering unit
1 EA
1 Version found

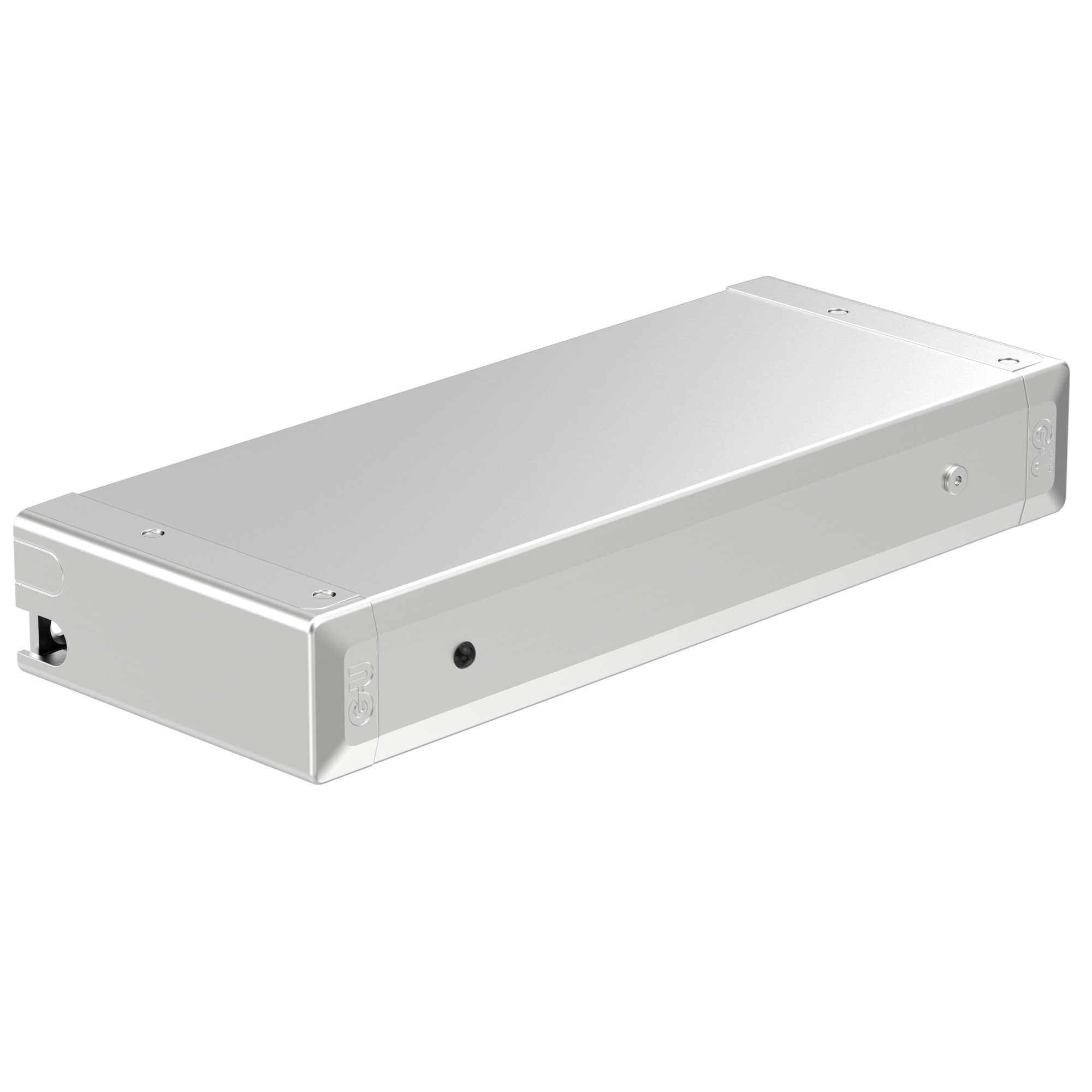

K-21021-00-0-1 | Spindle drive | ELTRAL S 230
Part No.K-21021-00-0-1
EAN4015596884992
No content available
Attributes
Duty ratio
25 % ED (150 s ON / 450 S OFF)
Suitable for
Aufliegende Rahmenmontage
length of lock case
211 mm
Width of housing
83 mm
Height/depth of case
33 mm
velocity
ca. 1,2 mm/s bei 1400 N
Lift
max. 70 mm
Force
1400 N
power consumption
90 W
Material
Aluminium
Profile material
Aluminium, Holz, PVC, Metal
Protection class/protection code
IP 20
Voltage
230 V AC ± 10 , 50 Hz
Power
0,4 A
