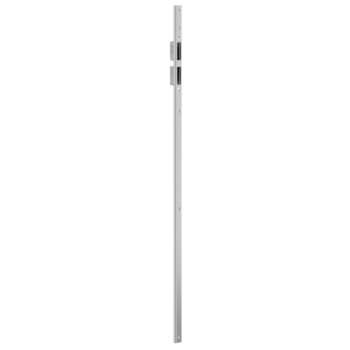

6-40446-AC-0-8 | *Slo-AUT-DR/U24x6/1750/NL12/730
Part No.6-40446-AC-0-8
EAN 4015596536792
Area of application
Door technology
Area of application (specified)
Turn-Only
Application system
SECURY
Product type
Top striker
Description of finish
Ground stainless steel
Gross weight
2.16 KG
Packing unit
5 EA
Minimum ordering unit
1 EA
1 Version found
6-40446-AC-0-1 | Top striker | *Slo-AUT-DR/U24x6/1750/NL12/730
Part No.6-40446-AC-0-1
EAN4015596536785
No content available
Attributes
Frame groove/Rebate
Euro-rebate 24 x 8
Axis
12 mm
Adjustable
concealed
Clearance
12 mm
Top locking position 1 (A1)
730 mm
Marking notch
890 mm
Profile dimension
24 x 6 x 6 x 2
Profile length
764,5 mm
Accessory profile
U profile
Profile end
with coating
Profile material
Holz, Aluminium
Screw axis
12 mm
Locking type
Automatic double bolt, 1 Automatic double latchbolts, Double bolt
